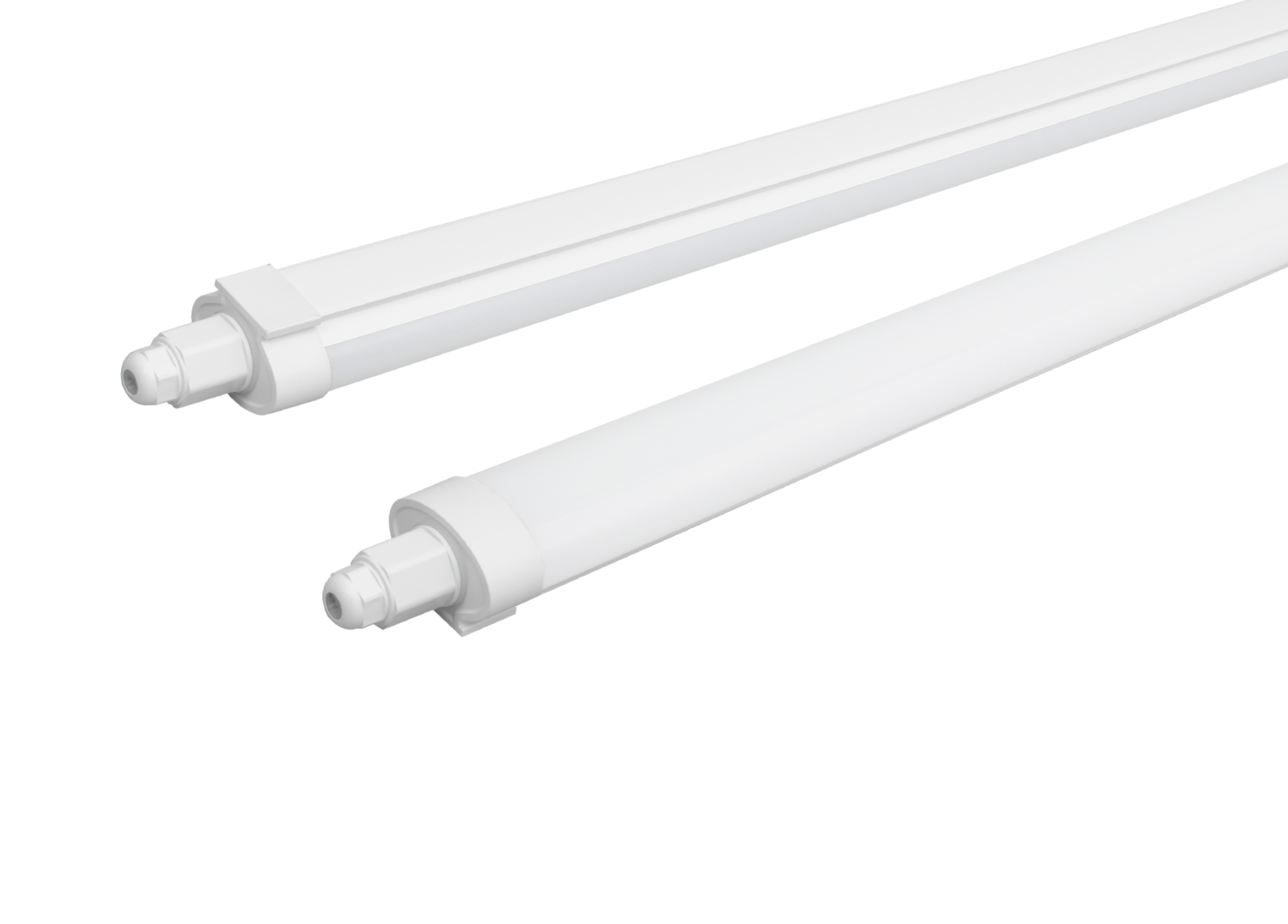

Base Linear 65

Industrial solutions · LED

BASELIN-M-840-1

A linear luminaire for demanding environments. IP65 and IK08 ratings make it suitable for dusty, damp and cold conditions. A reliable choice for warehouses, workshops, garages and production halls. Part of the Base range. Standard version without configuration, at a price that holds up in budget-driven projects.

Technical specifications

Light Source
LED
CCT
4000
CRI
80
Connected load
50.00 W
Lumen output
7,000.00 lm
Efficiency
140.0 lm/W
LED
220 - 240V AC, 50/60Hz
65
II
ce
True
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

IP protection

65

Protection class

II

Impact rating

IK 08

Ambient temperature

0 to +30 °C

Light Source

LED

CCT

4000

CRI

80

Connected load

50.00 W

Lumen output

7,000.00 lm

Efficiency

140.0 lm/W

Optical system

Diffuser

Optical part material

PC

Housing material

Plastic

Width

70.00 mm

Height

50.00 mm

Length

1,500.00 mm

Service lifetime (L80 B30)

80000 h

Warranty

5 years

Illuminance Calculator

7000 lm · 50.0 W
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Dimmensions and light distribution

Base Linear 65
Dimmensions
Base Linear 65

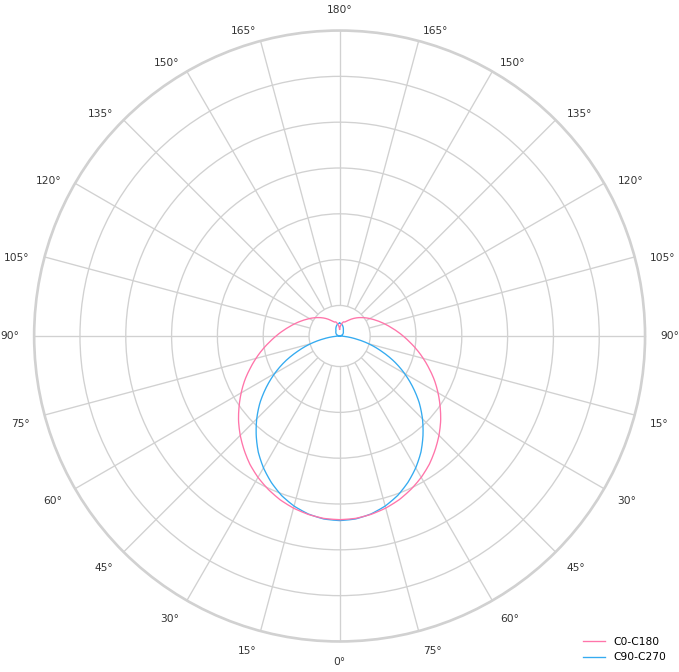

Polar curve
