Office solutions · LED

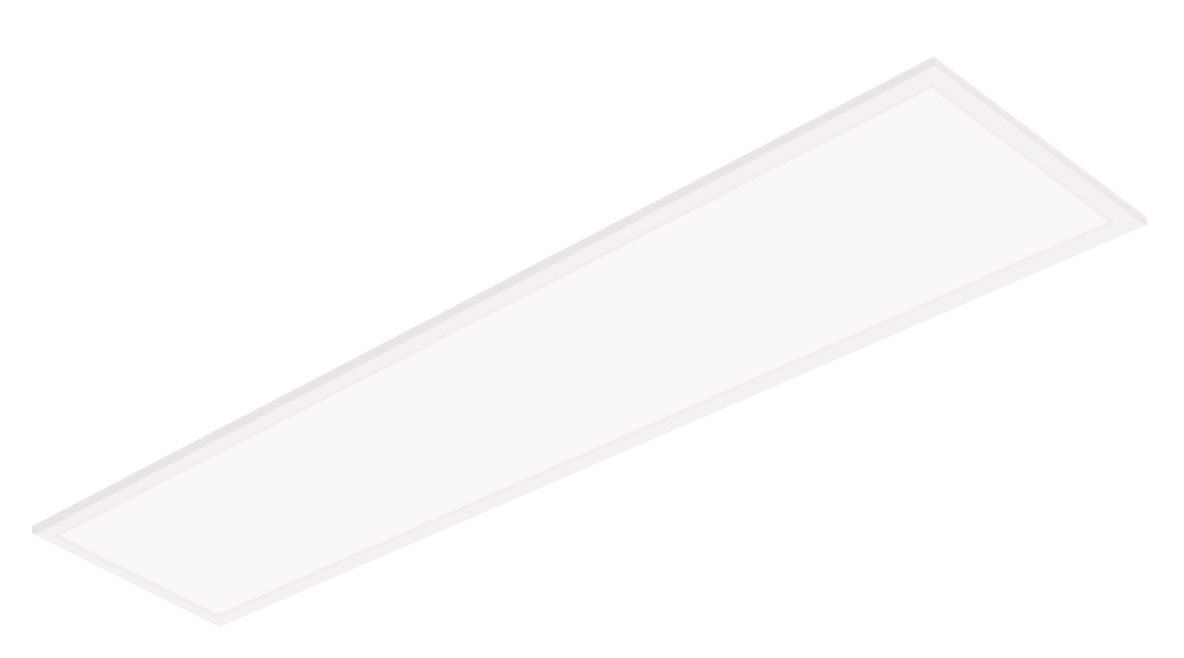

Square12030-M-840-1
Square 1200x300 is an LED panel with state-of-the-art LED technology and LED source with 50,000 hours lifetime. Available in 3 power options with color temperature 4000K with CRI 80+. Steel body with PMMA diffuser for optimal light distribution and DALI control option available. Fully compatible with existing lighting infrastructure. Ideal for offices, halls and commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 26.00 W
- Lumen output
- 4,160.00 lm
- Efficiency
- 160.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
40/20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
26.00 W
Lumen output
4,160.00 lm
Efficiency
160.0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
295.00 mm
Height
29.00 mm
Length
1,195.00 mm
Weight
1.67 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator

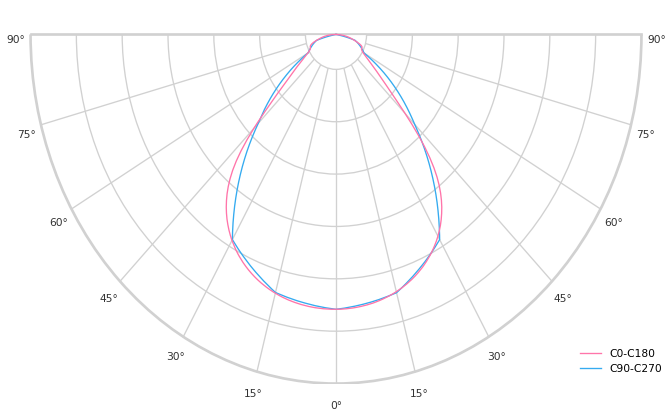

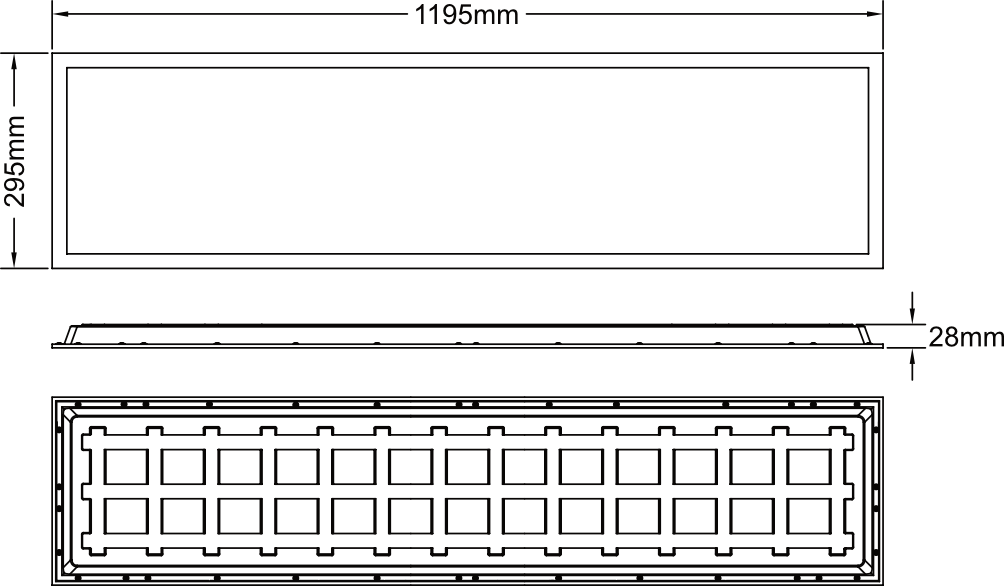

Dimmensions and light distribution
