Base Line 20 surface

Office solutions · LED

Base Line 20 surface

https://www.arlistore.com/web/image/product.template/1099/image_1920?unique=fd550ba

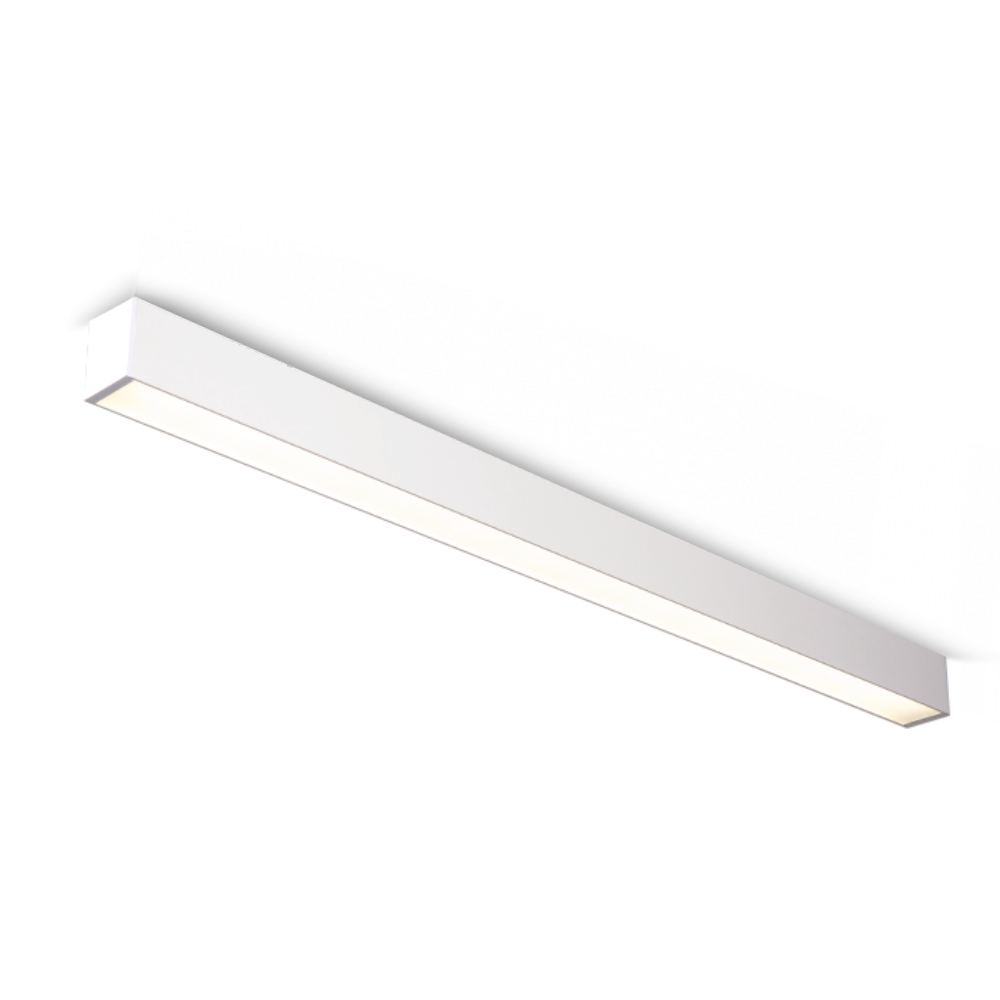

Linear surface luminaire for offices, classrooms and corridors. Aluminium profile 45 × 75 mm, PC diffuser, white or black finish (RAL 9003 / RAL 9005).

Technical specifications

Light Source
LED
CCT
4000K
CRI
80
Switching type
Non-dimmable
Wattage
24-39 W
Lumen output
2818-4650 lm
LED
220 - 240V AC, 50/60Hz
20
I
ce

Housing colors

Black Black RAL 9005
White White RAL 9003

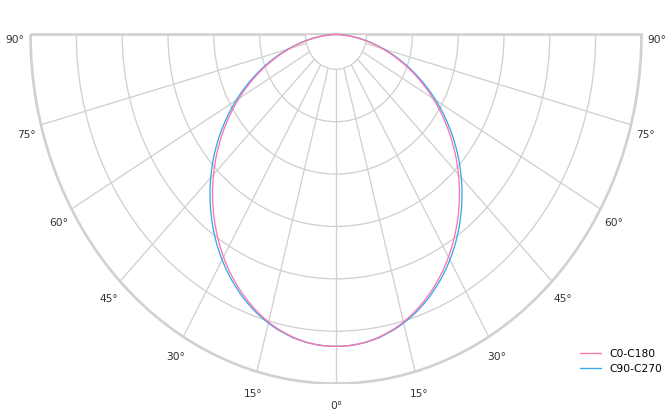

Light distributions

product.polar.curve.image,173
Default

Options

Product code
Power consumption[W]
0 0
CCT
CRI
Housing color
LINBASSUR-BL-L-840-1
39.6
4000k
80
Black
Power consumption[W]39.6
CCT4000k
CRI80
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
LINBASSUR-BL-M-840-1
32.0
4000k
80
Black
Power consumption[W]32.0
CCT4000k
CRI80
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
LINBASSUR-BL-S-840-1
24.0
4000k
80
Black
Power consumption[W]24.0
CCT4000k
CRI80
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
LINBASSUR-WH-L-840-1
39.6
4000k
80
White
Power consumption[W]39.6
CCT4000k
CRI80
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
LINBASSUR-WH-M-840-1
32.0
4000k
80
White
Power consumption[W]32.0
CCT4000k
CRI80
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
LINBASSUR-WH-S-840-1
24.0
4000k
80
White
Power consumption[W]24.0
CCT4000k
CRI80
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

Downloads

↓ Datasheet PDF → ↓ CE PDF → ↓ Manual PDF →
