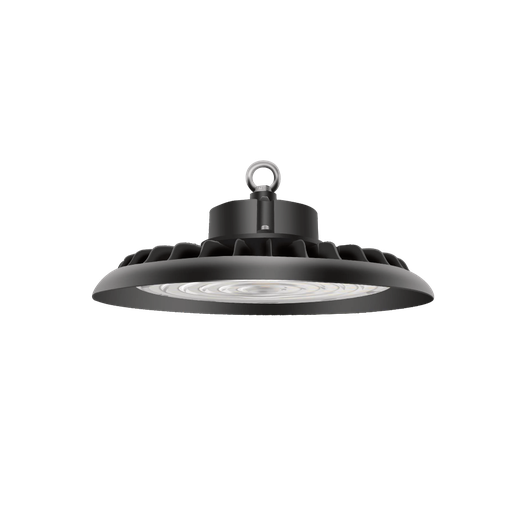

Cross
Technical specifications
Light Source
LED
CCT
4000K, 5000K
CRI
80
Switching type
Nestmievateľné , DALI , 1-10V
Wattage
99-198 W
Lumen output
15365-30795 lm
Specification
LED svietidlo pre vysoké priestory vytvorené s dôrazom na účinnosť a jednoduché inštaláciu. Vhodné na inštaláciu v skladoch a výrobných halách.
Light distributions
60°
90°
120°
Options
Product code
Power consumption[W]
Lumen output[lm]
CCT
CRI
Dimming
Light distribution
Cross-L-840-1-120
198.8
30795
4000k
80
Non-dimmable
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-L-840-1-60
198.8
30795
4000k
80
Non-dimmable
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-L-840-1-90
198.8
30795
4000k
80
Non-dimmable
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-L-840-2-120
198.8
30795
4000k
80
DALI
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-L-840-2-60
198.8
30795
4000k
80
DALI
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-L-840-2-90
198.8
30795
4000k
80
DALI
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-L-840-4-120
198.8
30795
4000k
80
1-10V
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-L-840-4-60
198.8
30795
4000k
80
1-10V
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-L-840-4-90
198.8
30795
4000k
80
1-10V
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
90°
Cross-L-850-1-120
198.8
30795
5000k
80
Non-dimmable
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-L-850-1-60
198.8
30795
5000k
80
Non-dimmable
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-L-850-1-90
198.8
30795
5000k
80
Non-dimmable
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-L-850-2-120
198.8
30795
5000k
80
DALI
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-L-850-2-60
198.8
30795
5000k
80
DALI
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-L-850-2-90
198.8
30795
5000k
80
DALI
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-L-850-4-120
198.8
30795
5000k
80
1-10V
120°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-L-850-4-60
198.8
30795
5000k
80
1-10V
60°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-L-850-4-90
198.8
30795
5000k
80
1-10V
90°
Power consumption[W]
198.8
Lumen output[lm]
30795
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
90°
Cross-M-840-1-120
150.6
23197
4000k
80
Non-dimmable
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-M-840-1-60
150.6
23197
4000k
80
Non-dimmable
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-M-840-1-90
150.6
23197
4000k
80
Non-dimmable
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-M-840-2-120
150.6
23197
4000k
80
DALI
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-M-840-2-60
150.6
23197
4000k
80
DALI
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-M-840-2-90
150.6
23197
4000k
80
DALI
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-M-840-4-120
150.6
23197
4000k
80
1-10V
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-M-840-4-60
150.6
23197
4000k
80
1-10V
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-M-840-4-90
150.6
23197
4000k
80
1-10V
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
90°
Cross-M-850-1-120
150.6
23197
5000k
80
Non-dimmable
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-M-850-1-60
150.6
23197
5000k
80
Non-dimmable
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-M-850-1-90
150.6
23197
5000k
80
Non-dimmable
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-M-850-2-120
150.6
23197
5000k
80
DALI
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-M-850-2-60
150.6
23197
5000k
80
DALI
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-M-850-2-90
150.6
23197
5000k
80
DALI
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-M-850-4-120
150.6
23197
5000k
80
1-10V
120°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-M-850-4-60
150.6
23197
5000k
80
1-10V
60°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-M-850-4-90
150.6
23197
5000k
80
1-10V
90°
Power consumption[W]
150.6
Lumen output[lm]
23197
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
90°
Cross-S-840-1-120
99.58
15365
4000k
80
Non-dimmable
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-S-840-1-60
99.58
15365
4000k
80
Non-dimmable
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-S-840-1-90
99.58
15365
4000k
80
Non-dimmable
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-S-840-2-120
99.58
15365
4000k
80
DALI
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-S-840-2-60
99.58
15365
4000k
80
DALI
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-S-840-2-90
99.58
15365
4000k
80
DALI
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-S-840-4-120
99.58
15365
4000k
80
1-10V
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-S-840-4-60
99.58
15365
4000k
80
1-10V
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-S-840-4-90
99.58
15365
4000k
80
1-10V
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
4000k
CRI
80
Dimming
1-10V
Lenses
90°
Cross-S-850-1-120
99.58
15365
5000k
80
Non-dimmable
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
120°
Cross-S-850-1-60
99.58
15365
5000k
80
Non-dimmable
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
60°
Cross-S-850-1-90
99.58
15365
5000k
80
Non-dimmable
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
Cross-S-850-2-120
99.58
15365
5000k
80
DALI
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
DALI
Lenses
120°
Cross-S-850-2-60
99.58
15365
5000k
80
DALI
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
DALI
Lenses
60°
Cross-S-850-2-90
99.58
15365
5000k
80
DALI
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
Cross-S-850-4-120
99.58
15365
5000k
80
1-10V
120°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
120°
Cross-S-850-4-60
99.58
15365
5000k
80
1-10V
60°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
60°
Cross-S-850-4-90
99.58
15365
5000k
80
1-10V
90°
Power consumption[W]
99.58
Lumen output[lm]
15365
CCT
5000k
CRI
80
Dimming
1-10V
Lenses
90°
Used in projects
Vysoká efektívnosť
Cross
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
