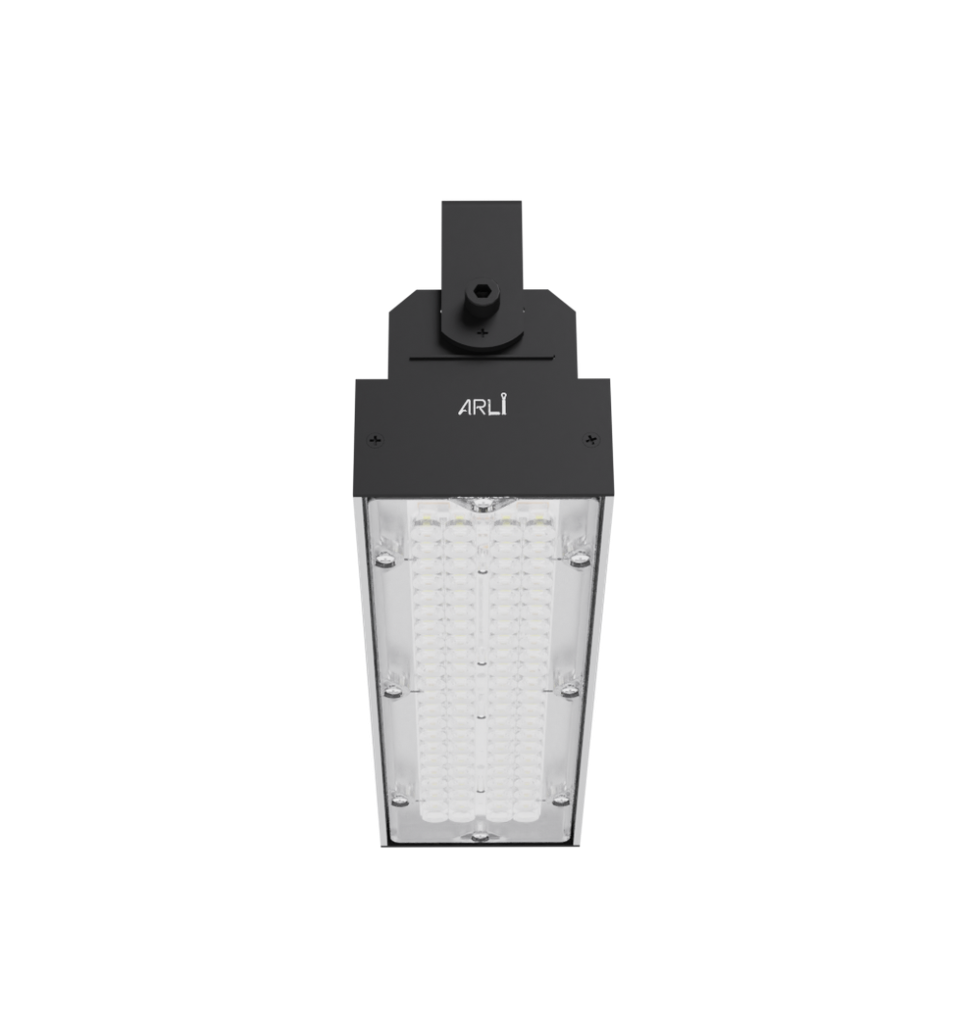

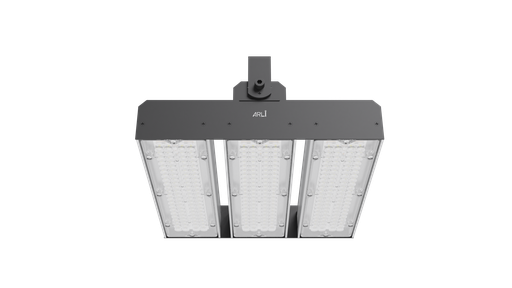

Industry 3 prisadené
Technical specifications
Light Source
LED
CCT
4000K, 5000K
CRI
80
Switching type
Nestmievateľné , DALI
Wattage
68-196 W
Lumen output
10741-32224 lm
Specification
LED svietidlo pre vysoké priestory vytvorené s dôrazom na účinnosť a jednoduchú inštaláciu. Vhodné na inštaláciu v skladoch a výrobných halách.
Applications and features
Efektívne chladenie
Pokročilé technológie výroby hliníkových chladičov zabezpečujú výborne chladenie pre každý led modul samostatne. Vďaka tomuto unikátnemu riešeniu chladenia sa maximalizuje životnosť, ako aj svetelný tok počas celej životnosti. Životnosť svietidla >100 000 (L80B10).
Náklopný mechanizmus
Vďaka náklopnému mechanizmu jednoducho nasmerujete tok svetla tam, kde je potrebný. Svietidlo je možné montovať na strop, stenu, fasádu.

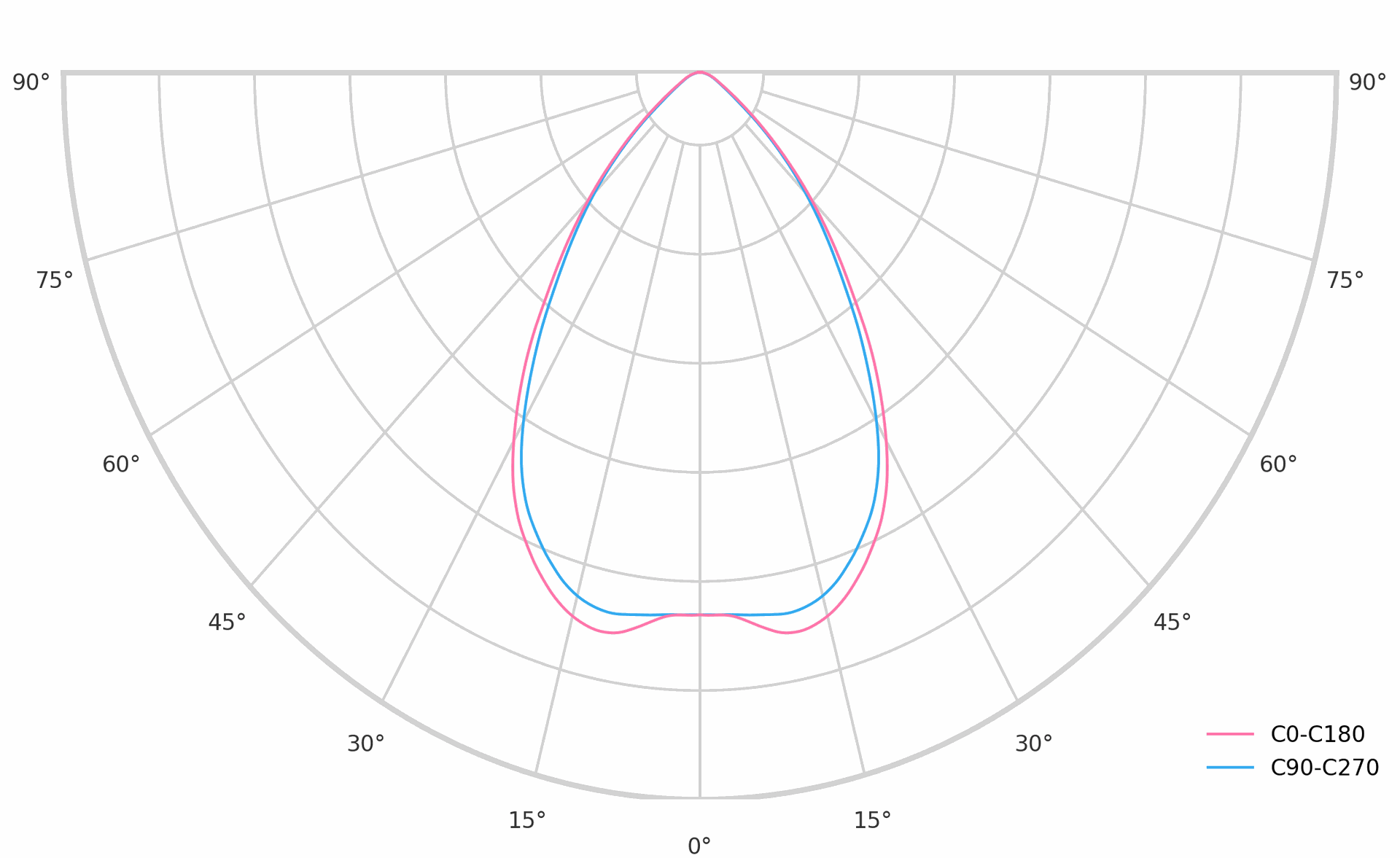

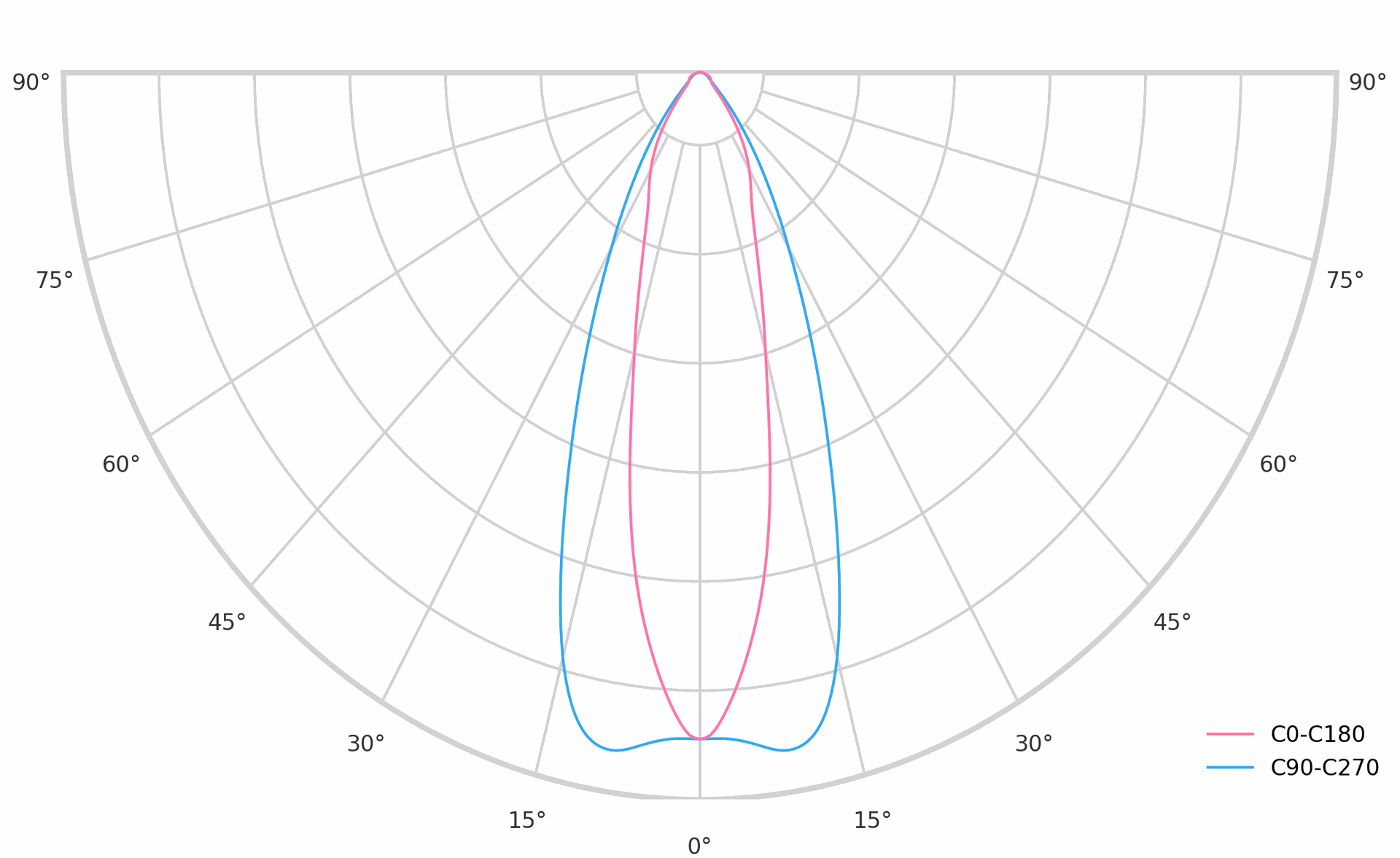

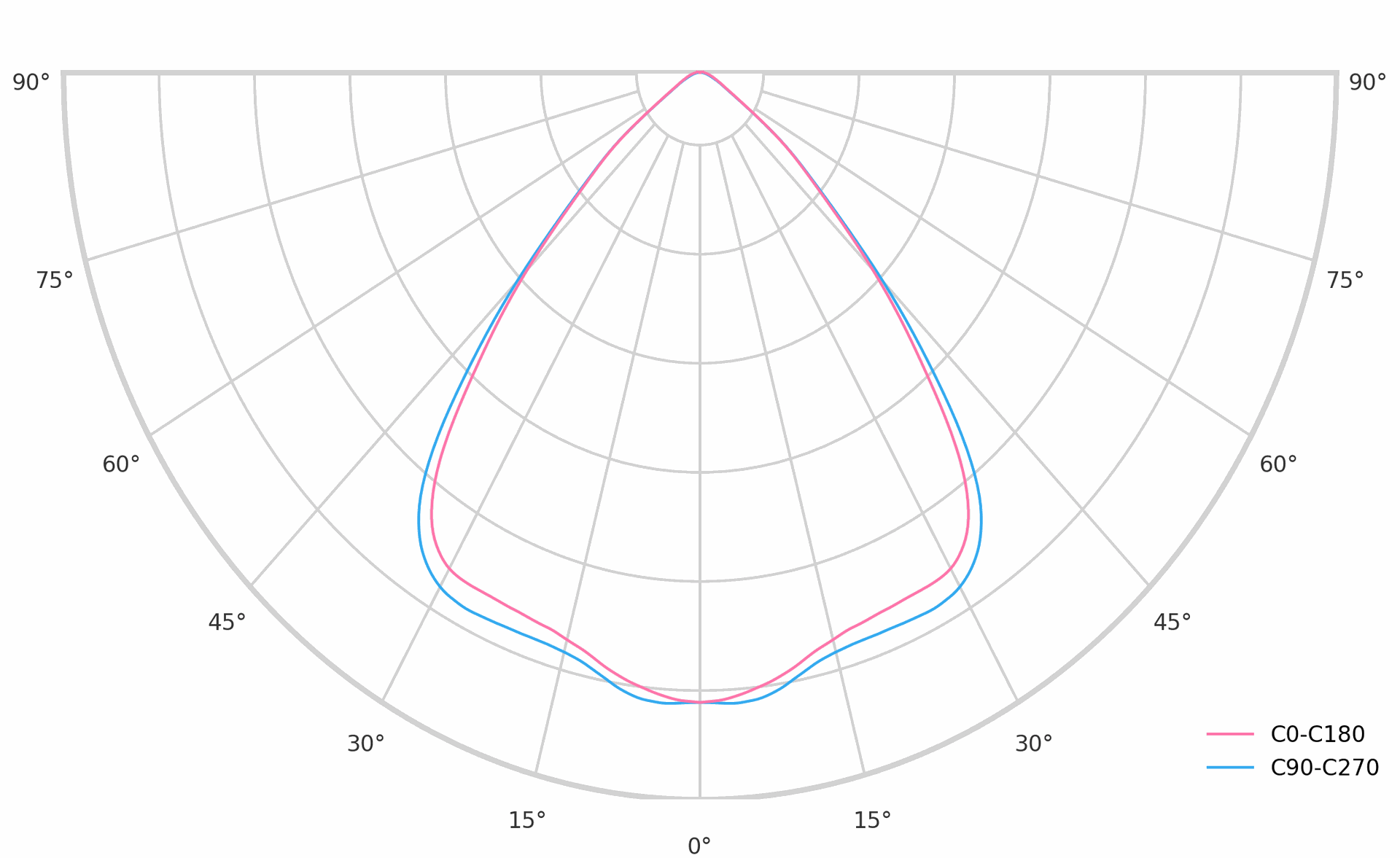

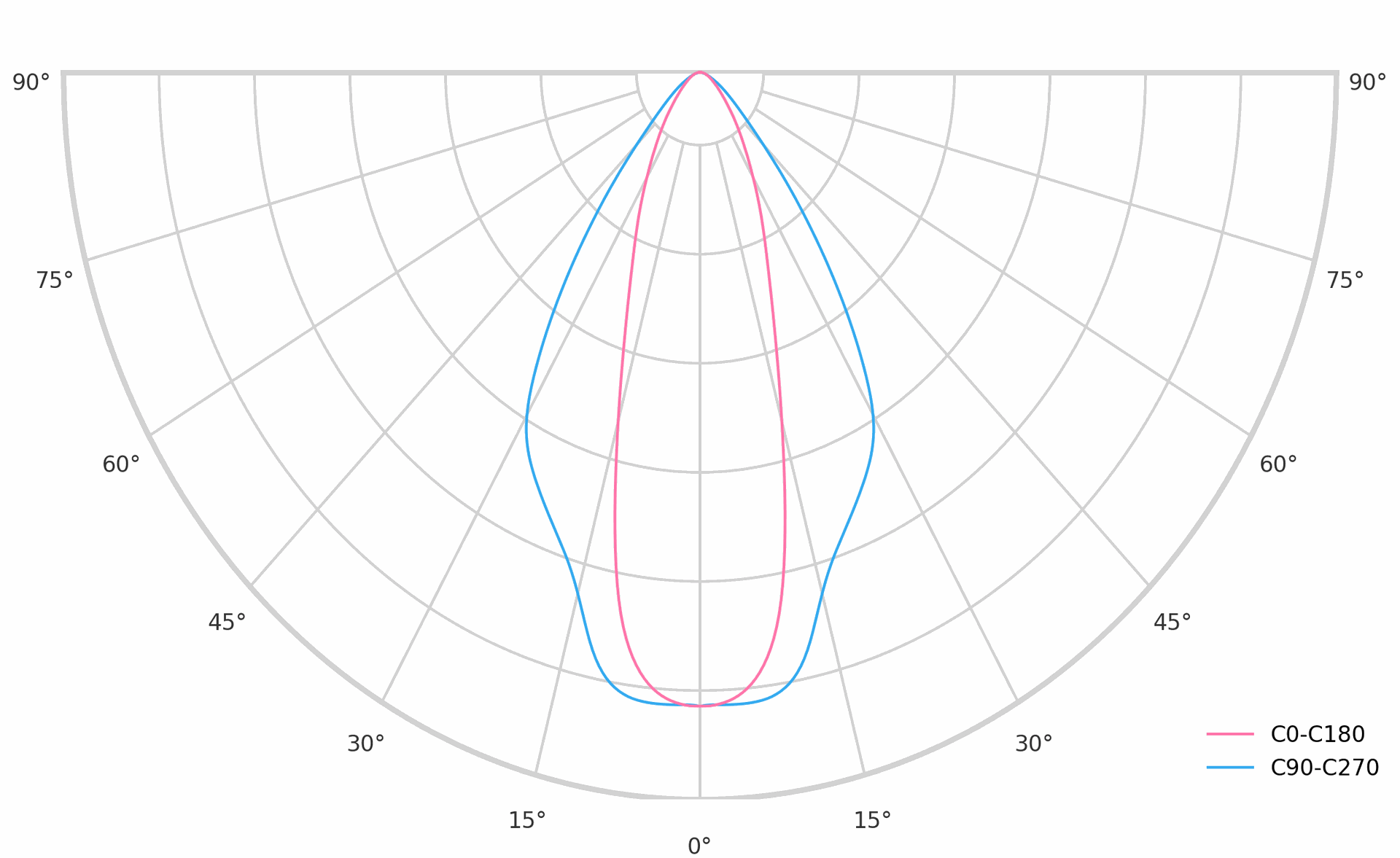

Light distributions
75°
90°
HR
WHR
Options
Product code
Power consumption[W]
Lumen output[lm]
CCT
CRI
Dimming
Light distribution
INDSUR3-L-840-1-75
133.15
21483
4000k
80
Non-dimmable
75°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-L-840-1-90
133.15
21483
4000k
80
Non-dimmable
90°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-L-840-1-HR
133.15
21483
4000k
80
Non-dimmable
HR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-L-840-1-WHR
133.15
21483
4000k
80
Non-dimmable
WHR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-L-840-2-75
133.15
21483
4000k
80
DALI
75°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-L-840-2-90
133.15
21483
4000k
80
DALI
90°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-L-840-2-HR
133.15
21483
4000k
80
DALI
HR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-L-840-2-WHR
133.15
21483
4000k
80
DALI
WHR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
4000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-L-850-1-75
133.15
21483
5000k
80
Non-dimmable
75°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-L-850-1-90
133.15
21483
5000k
80
Non-dimmable
90°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-L-850-1-HR
133.15
21483
5000k
80
Non-dimmable
HR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-L-850-1-WHR
133.15
21483
5000k
80
Non-dimmable
WHR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-L-850-2-75
133.15
21483
5000k
80
DALI
75°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-L-850-2-90
133.15
21483
5000k
80
DALI
90°
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-L-850-2-HR
133.15
21483
5000k
80
DALI
HR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-L-850-2-WHR
133.15
21483
5000k
80
DALI
WHR
Power consumption[W]
133.15
Lumen output[lm]
21483
CCT
5000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-M-840-1-75
102.7
16926
4000k
80
Non-dimmable
75°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-M-840-1-90
102.7
16926
4000k
80
Non-dimmable
90°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-M-840-1-HR
102.7
16926
4000k
80
Non-dimmable
HR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-M-840-1-WHR
102.7
16926
4000k
80
Non-dimmable
WHR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-M-840-2-75
102.7
16926
4000k
80
DALI
75°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-M-840-2-90
102.7
16926
4000k
80
DALI
90°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-M-840-2-HR
102.7
16926
4000k
80
DALI
HR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-M-840-2-WHR
102.7
16926
4000k
80
DALI
WHR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
4000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-M-850-1-75
102.7
16926
5000k
80
Non-dimmable
75°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-M-850-1-90
102.7
16926
5000k
80
Non-dimmable
90°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-M-850-1-HR
102.7
16926
5000k
80
Non-dimmable
HR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-M-850-1-WHR
102.7
16926
5000k
80
Non-dimmable
WHR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-M-850-2-75
102.7
16926
5000k
80
DALI
75°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-M-850-2-90
102.7
16926
5000k
80
DALI
90°
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-M-850-2-HR
102.7
16926
5000k
80
DALI
HR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-M-850-2-WHR
102.7
16926
5000k
80
DALI
WHR
Power consumption[W]
102.7
Lumen output[lm]
16926
CCT
5000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-S-840-1-75
68.63
10741
4000k
80
Non-dimmable
75°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-S-840-1-90
68.63
10741
4000k
80
Non-dimmable
90°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-S-840-1-HR
68.63
10741
4000k
80
Non-dimmable
HR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-S-840-1-WHR
68.63
10741
4000k
80
Non-dimmable
WHR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-S-840-2-75
68.63
10741
4000k
80
DALI
75°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-S-840-2-90
68.63
10741
4000k
80
DALI
90°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-S-840-2-HR
68.63
10741
4000k
80
DALI
HR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-S-840-2-WHR
68.63
10741
4000k
80
DALI
WHR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
4000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-S-850-1-75
68.63
10741
5000k
80
Non-dimmable
75°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-S-850-1-90
68.63
10741
5000k
80
Non-dimmable
90°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-S-850-1-HR
68.63
10741
5000k
80
Non-dimmable
HR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-S-850-1-WHR
68.63
10741
5000k
80
Non-dimmable
WHR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-S-850-2-75
68.63
10741
5000k
80
DALI
75°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-S-850-2-90
68.63
10741
5000k
80
DALI
90°
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-S-850-2-HR
68.63
10741
5000k
80
DALI
HR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-S-850-2-WHR
68.63
10741
5000k
80
DALI
WHR
Power consumption[W]
68.63
Lumen output[lm]
10741
CCT
5000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-XL-840-1-75
196.22
32224
4000k
80
Non-dimmable
75°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-XL-840-1-90
196.22
32224
4000k
80
Non-dimmable
90°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-XL-840-1-HR
196.22
32224
4000k
80
Non-dimmable
HR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-XL-840-1-WHR
196.22
32224
4000k
80
Non-dimmable
WHR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-XL-840-2-75
196.22
32224
4000k
80
DALI
75°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-XL-840-2-90
196.22
32224
4000k
80
DALI
90°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-XL-840-2-HR
196.22
32224
4000k
80
DALI
HR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-XL-840-2-WHR
196.22
32224
4000k
80
DALI
WHR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
4000k
CRI
80
Dimming
DALI
Lenses
WHR
INDSUR3-XL-850-1-75
196.22
32224
5000k
80
Non-dimmable
75°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
75°
INDSUR3-XL-850-1-90
196.22
32224
5000k
80
Non-dimmable
90°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
90°
INDSUR3-XL-850-1-HR
196.22
32224
5000k
80
Non-dimmable
HR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
HR
INDSUR3-XL-850-1-WHR
196.22
32224
5000k
80
Non-dimmable
WHR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
WHR
INDSUR3-XL-850-2-75
196.22
32224
5000k
80
DALI
75°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
DALI
Lenses
75°
INDSUR3-XL-850-2-90
196.22
32224
5000k
80
DALI
90°
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
DALI
Lenses
90°
INDSUR3-XL-850-2-HR
196.22
32224
5000k
80
DALI
HR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
DALI
Lenses
HR
INDSUR3-XL-850-2-WHR
196.22
32224
5000k
80
DALI
WHR
Power consumption[W]
196.22
Lumen output[lm]
32224
CCT
5000k
CRI
80
Dimming
DALI
Lenses
WHR
Used in projects
Industry 3 prisadené
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
