WOR-L-830-2-50-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
DALI
Connected load
14,57 W
Lumen output
1 551,48 lm
Efficiency
106,5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Skrutková svorka
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
14,57 W
Lumen output
1 551,48 lm
Efficiency
106,5 lm/W
Ripple
3 %
DALI address
1
Inrush current
4 A
Inrush time
46 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Oceľ
Surface finish
Prášková farba
Width
71,00 mm
Height
41,00 mm
Length
340,00 mm
Weight
0,75 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

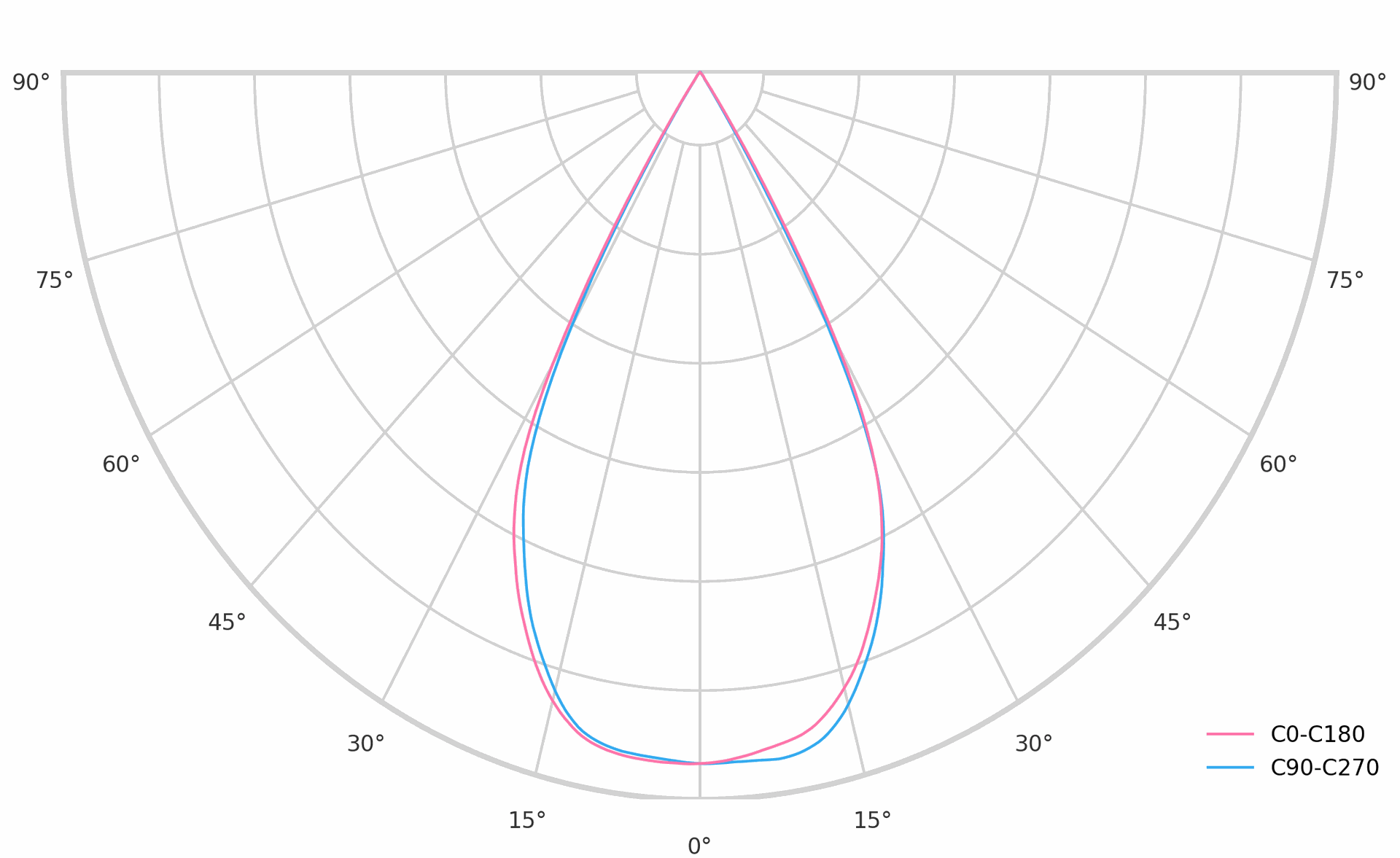

Dimmensions and light distribution
