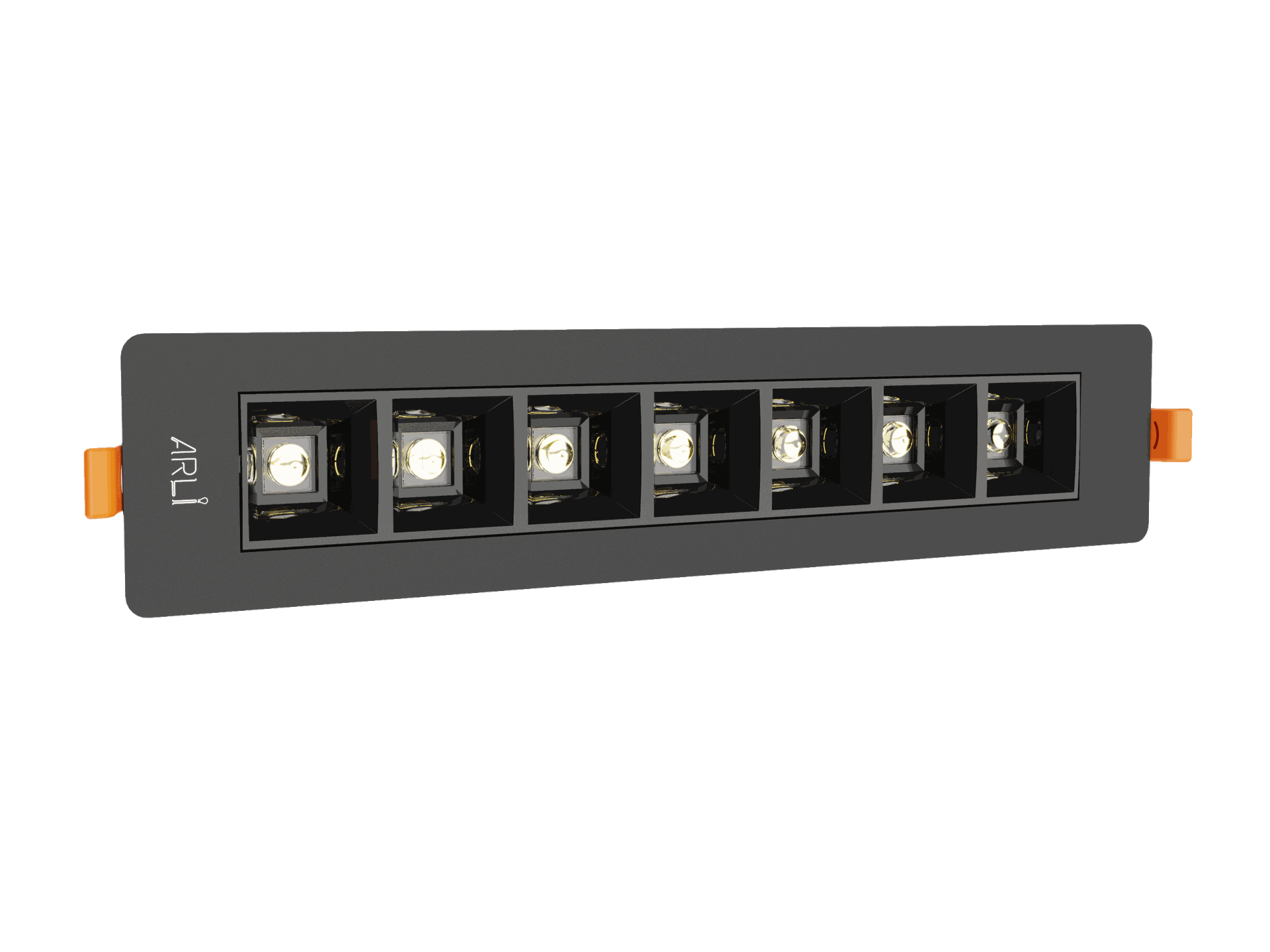

WOR-S-940-1-80-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
90
Switching type
Non-dimmable
Connected load
9,00 W
Lumen output
911,35 lm
Efficiency
101,3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Skrutková svorka
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
9,00 W
Lumen output
911,35 lm
Efficiency
101,3 lm/W
Ripple
1 %
Inrush current
10 A
Inrush time
200 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Oceľ
Surface finish
Prášková farba
Width
71,00 mm
Height
41,00 mm
Length
340,00 mm
Weight
0,75 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color
Dimmensions and light distribution
