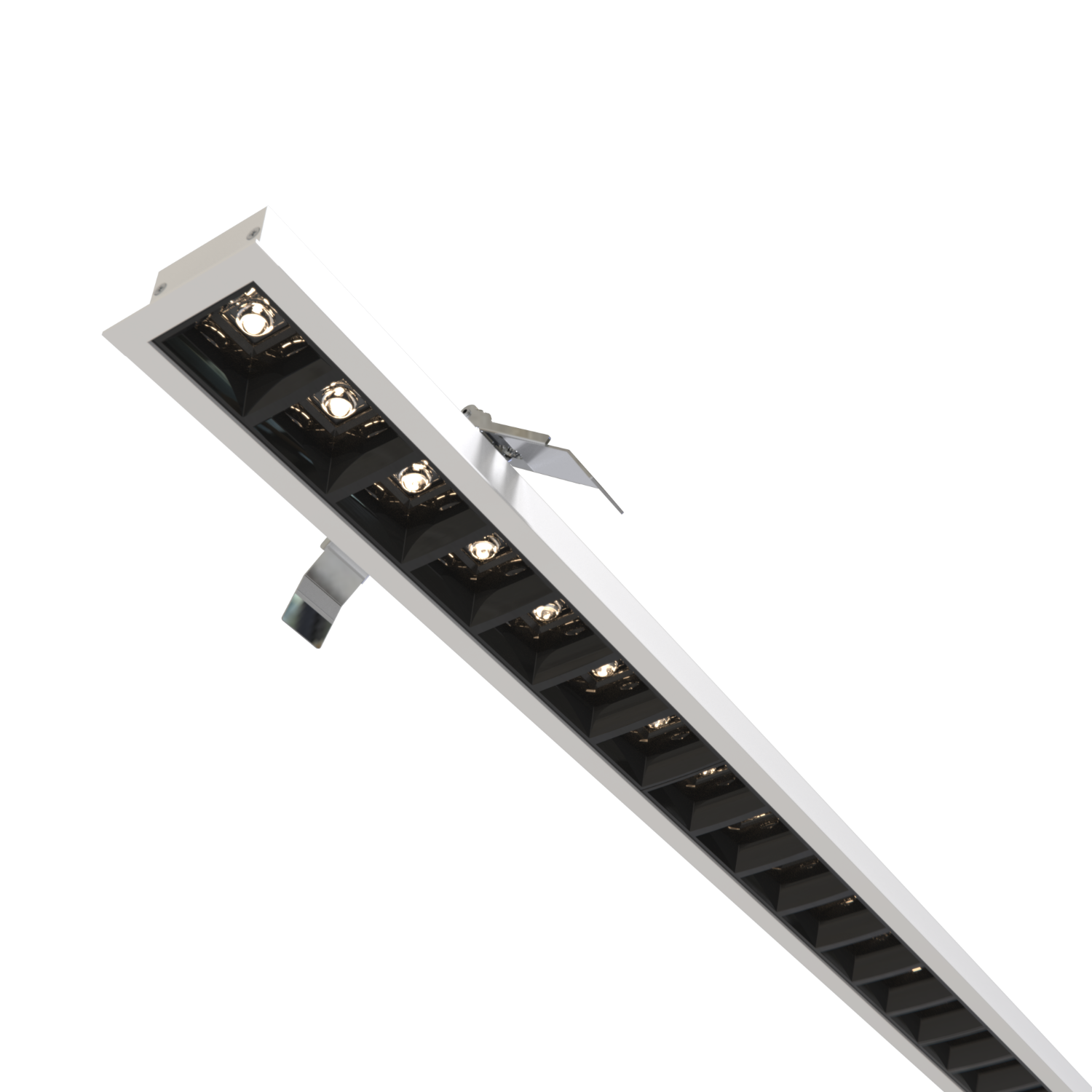

WORREC-1139-L-930-2-80-WH
Technical specifications
Light Source
LED
Switching type
DALI
Connected load
38,71 W
Lumen output
3 995,43 lm
Efficiency
103,2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Skrutková svorka
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
38,71 W
Lumen output
3 995,43 lm
Efficiency
103,2 lm/W
Ripple
3 %
DALI address
1
Standby power
0,50 W
Inrush current
5 A
Inrush time
45 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
59,00 mm
Height
53,00 mm
Length
1 139,00 mm
Weight
1,00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

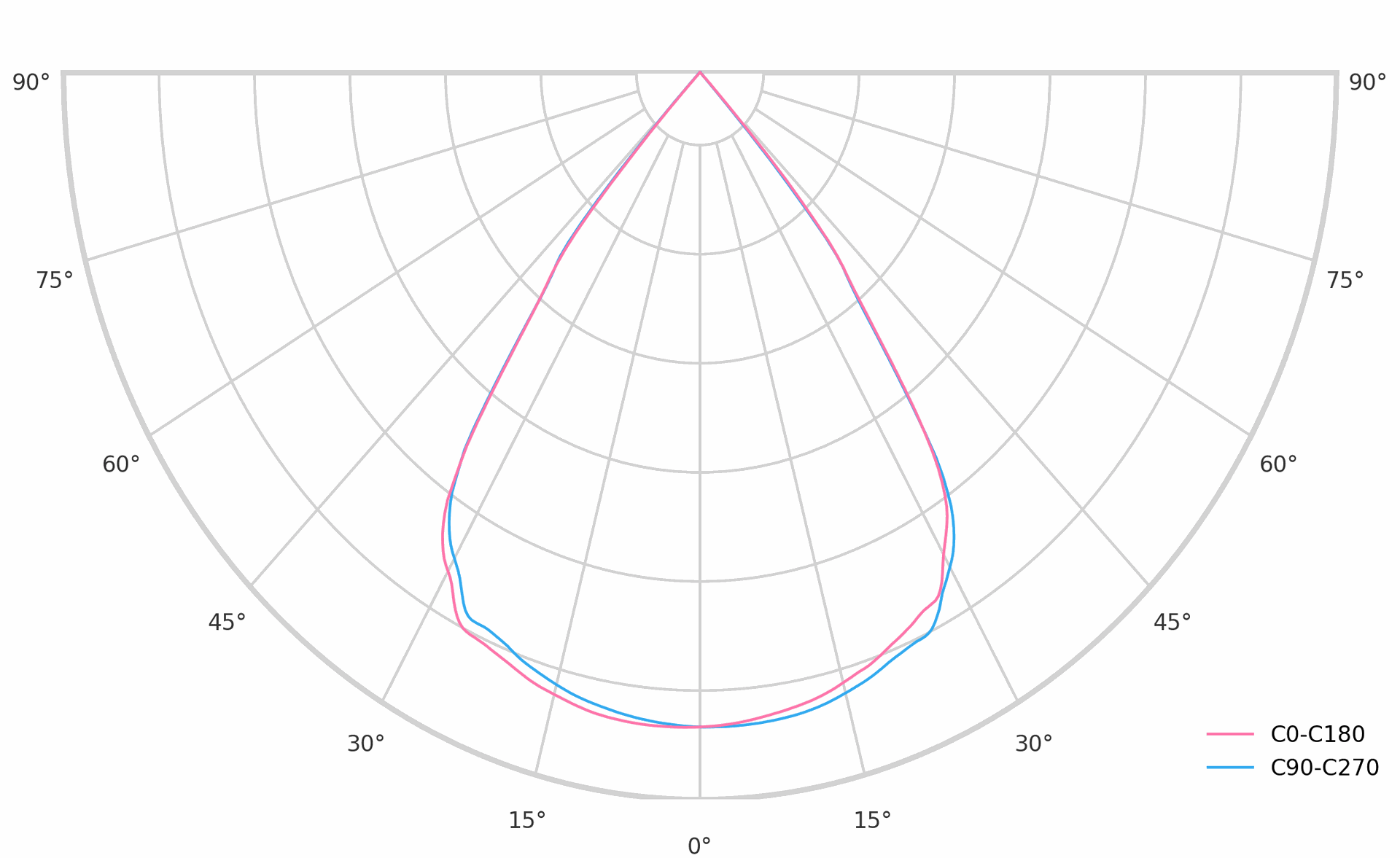

Dimmensions and light distribution
