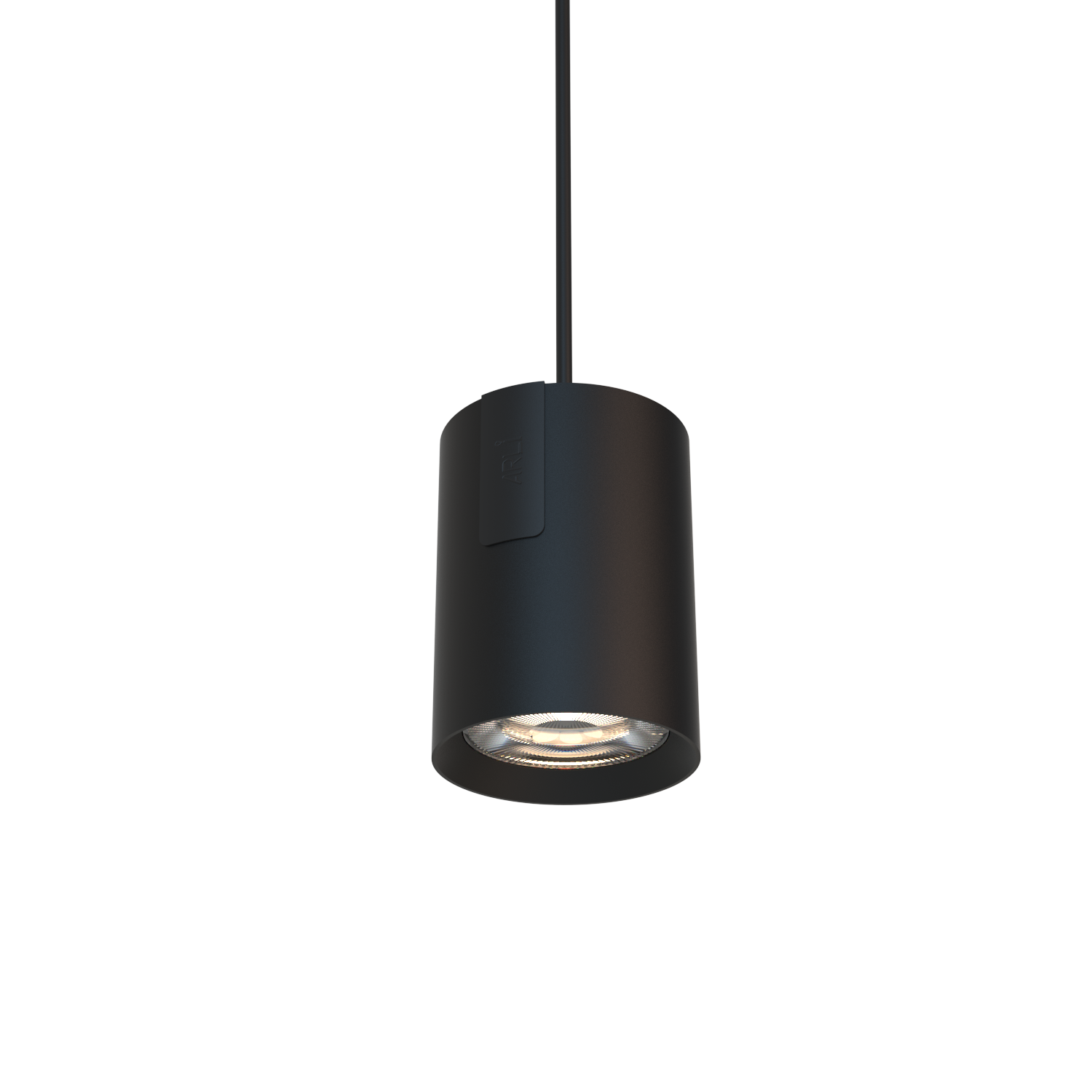

DIABLOSUS-L-830-1-60-BL-
Technical specifications
Light Source
LED
Switching type
Non-dimmable
Connected load
27,27 W
Lumen output
3 768,16 lm
Efficiency
138,2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3- fázový adaptér
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
27,27 W
Lumen output
3 768,16 lm
Efficiency
138,2 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Hliníkový odliatok
Surface finish
Prášková farba
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color
Cable colors

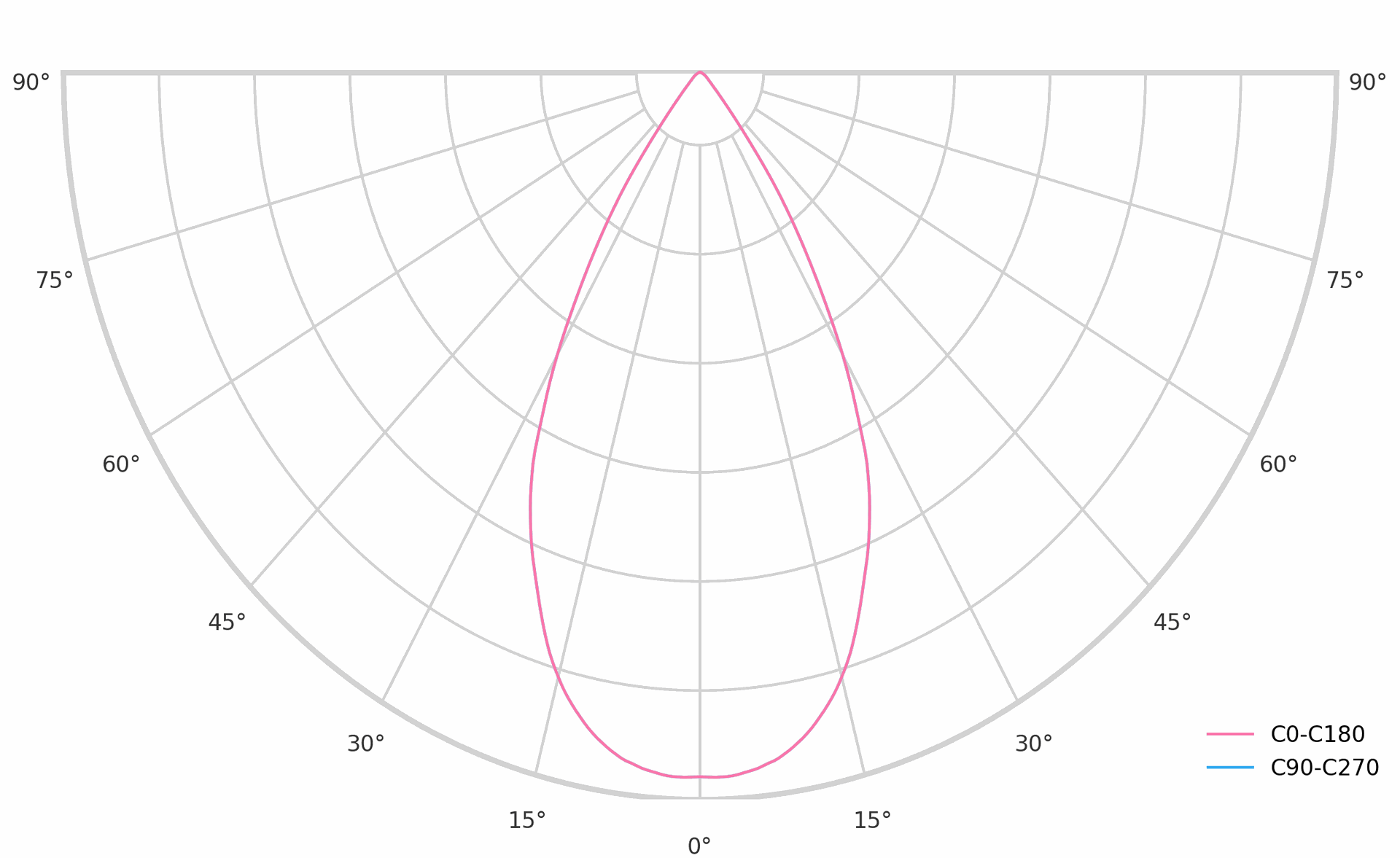

Dimmensions and light distribution
