DLR1-830-S
Technical specifications
Light Source
LED
Connected load
12,00 W
Lumen output
1 710,00 lm
Efficiency
142,5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
IP protection
44/20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
12,00 W
Lumen output
1 710,00 lm
Efficiency
142,5 lm/W
Optical system
Difúzor
Optical part material
PC
Housing material
Plast
Height
21,50 mm
Diameter
220,00 mm
Weight
0,70 kg
Service lifetime (L70 B50)
30 000 h
Warranty
3 roky
Kalkulačka osvetlenia

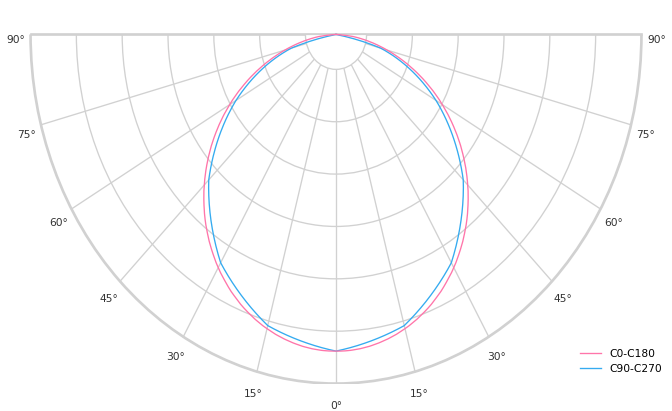

Dimmensions and light distribution
