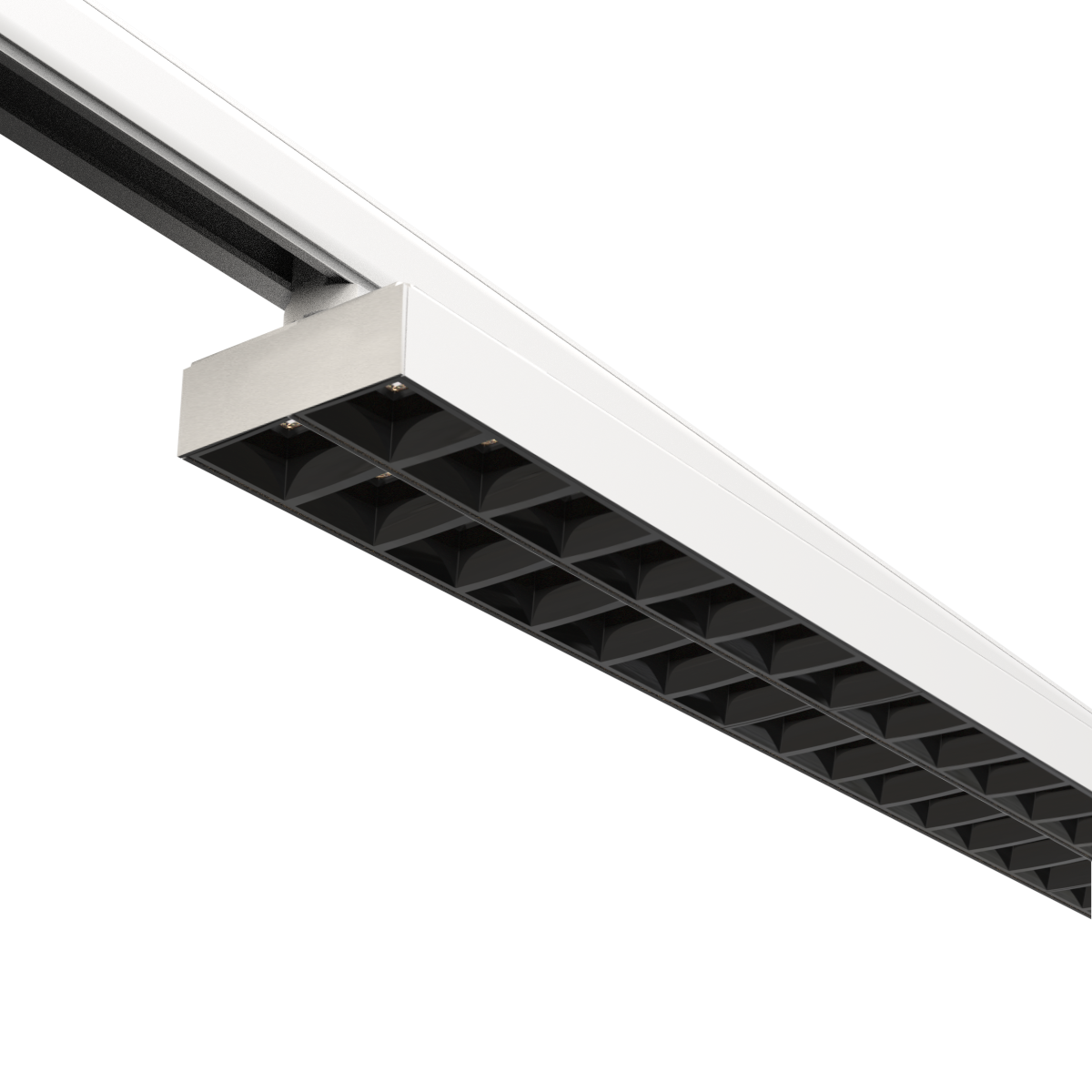

WORTDUO-S-940-2-80-WH
Technical specifications
Light Source
LED
CCT
4000k
CRI
90
Switching type
DALI
Connected load
23,66 W
Lumen output
2 790,08 lm
Efficiency
117,9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3- fázový adaptér
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
23,66 W
Lumen output
2 790,08 lm
Efficiency
117,9 lm/W
Ripple
3 %
DALI address
1
Standby power
0,25 W
Inrush current
18 A
Inrush time
104 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
44,00 mm
Height
53,00 mm
Length
1 122,00 mm
Weight
2,80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

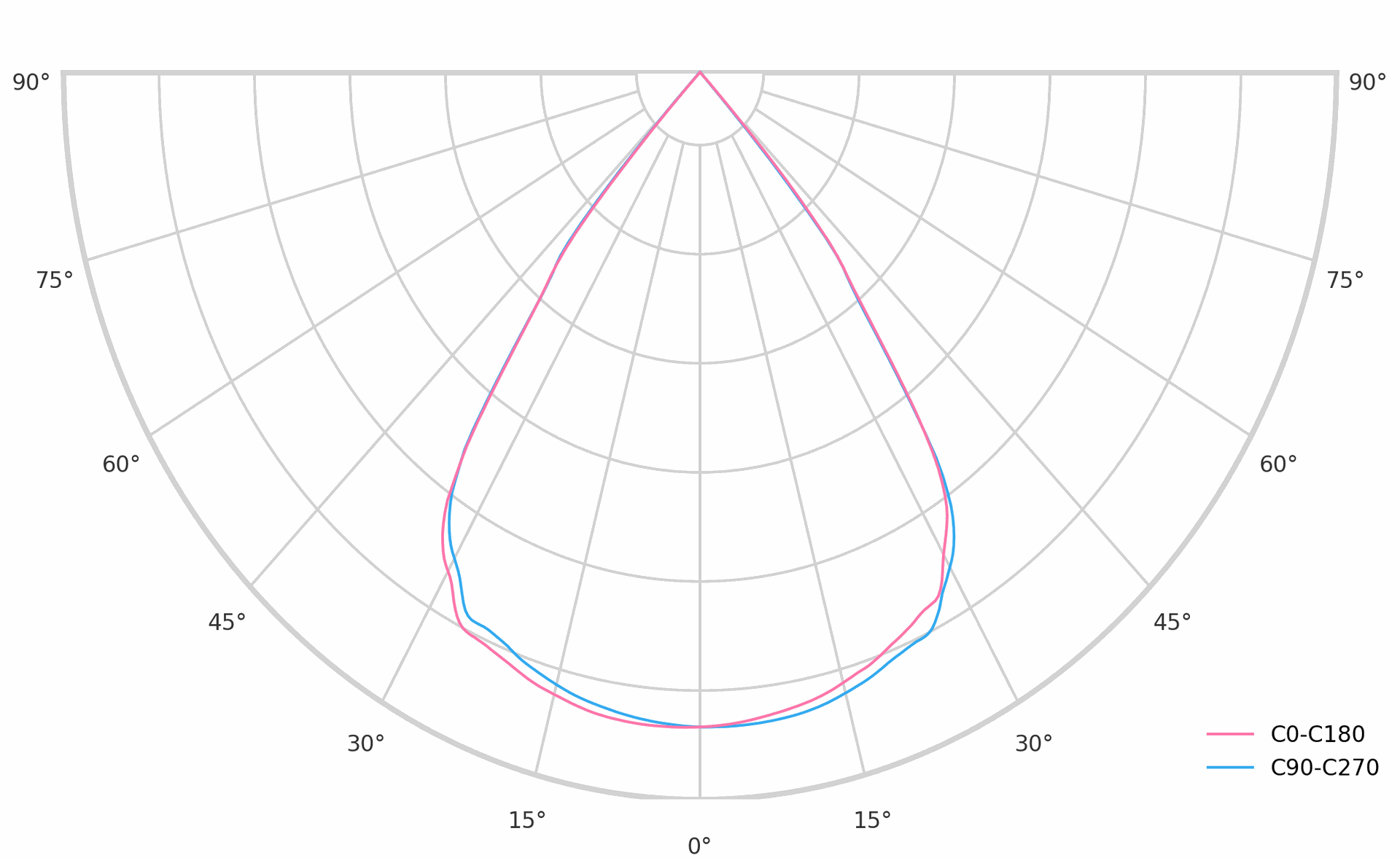

Dimmensions and light distribution
