LINESUS572-S-840-2-WH-DI-
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
8,45 W
Lumen output
754,35 lm
Efficiency
89,3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
8,45 W
Lumen output
754,35 lm
Efficiency
89,3 lm/W
Ripple
1 %
DALI address
1
Standby power
0,50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Difúzor
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
50,00 mm
Height
70,00 mm
Length
572,00 mm
Weight
1,23 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color
Cable colors

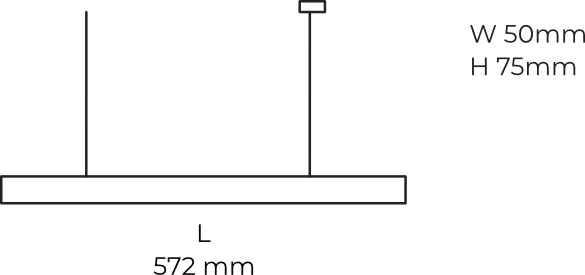

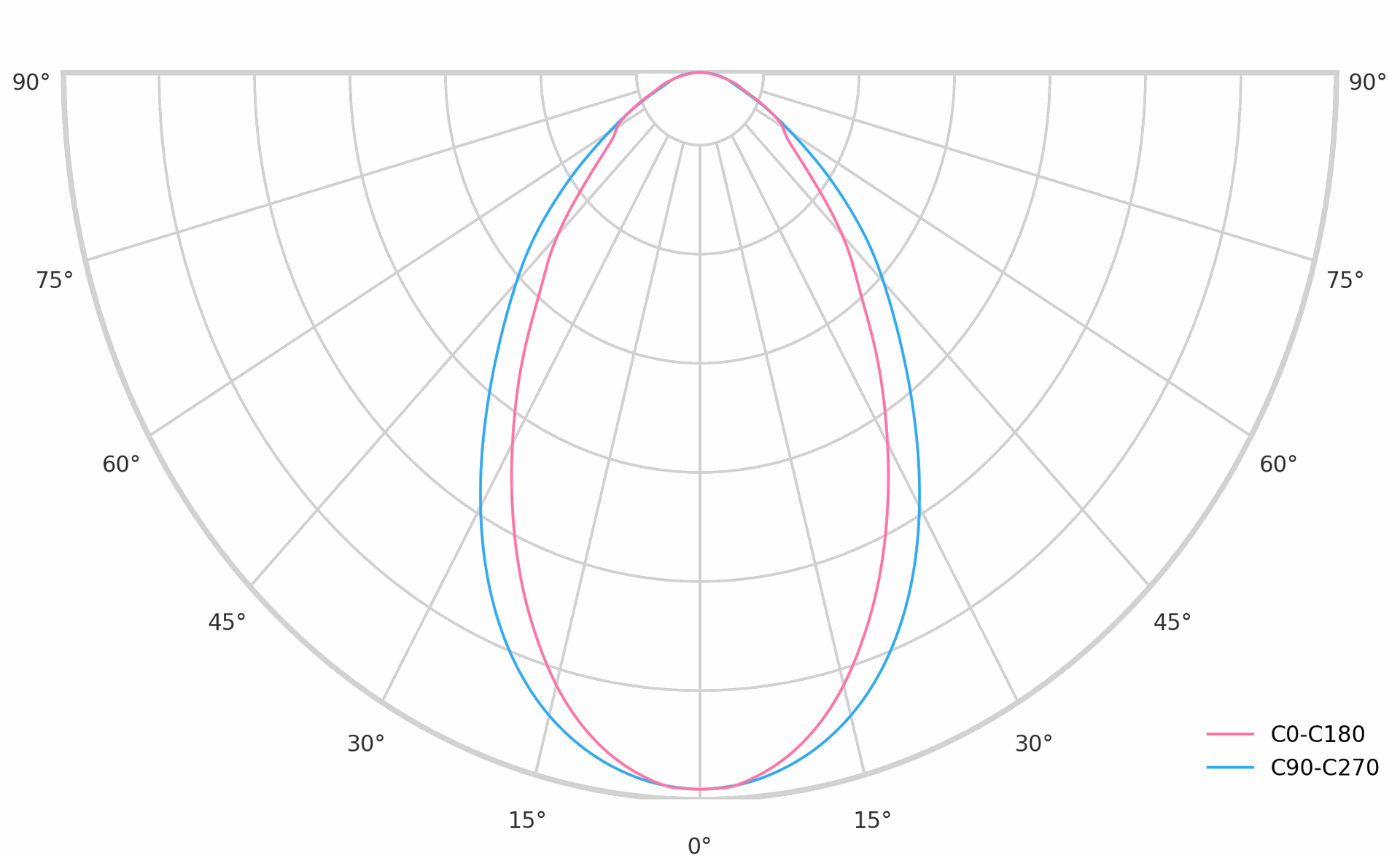

Dimmensions and light distribution
