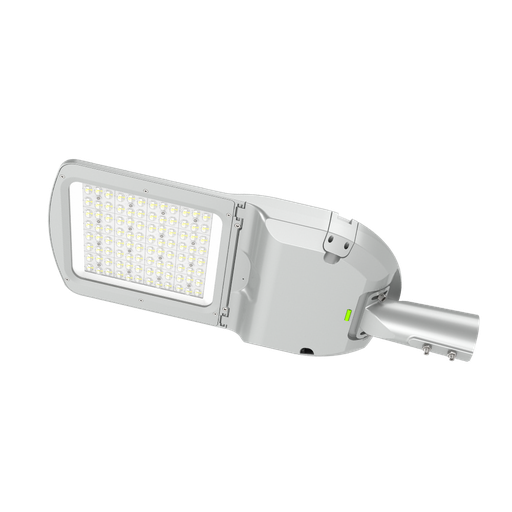

POS-L-730-1-C15014
Technical specifications
Light Source
LED
CCT
3000k
CRI
70
Switching type
Non-dimmable
Connected load
102,56 W
Lumen output
12 517,63 lm
Efficiency
122,1 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Skrutková svorka
Switching type
Non-dimmable
IP protection
66
Protection class
I
Ambient temperature
-40 to +50 °C
Light Source
LED
CCT
3000k
CRI
70
Connected load
102,56 W
Lumen output
12 517,63 lm
Efficiency
122,1 lm/W
Ripple
3 %
Inrush current
81 A
Inrush time
36 μs
Optical system
Optika
Optical part material
Tvrdené sklo
Housing material
Hliníkový odliatok
Surface finish
Prášková farba
Width
240,00 mm
Height
109,00 mm
Length
613,00 mm
Weight
5,10 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
rokov

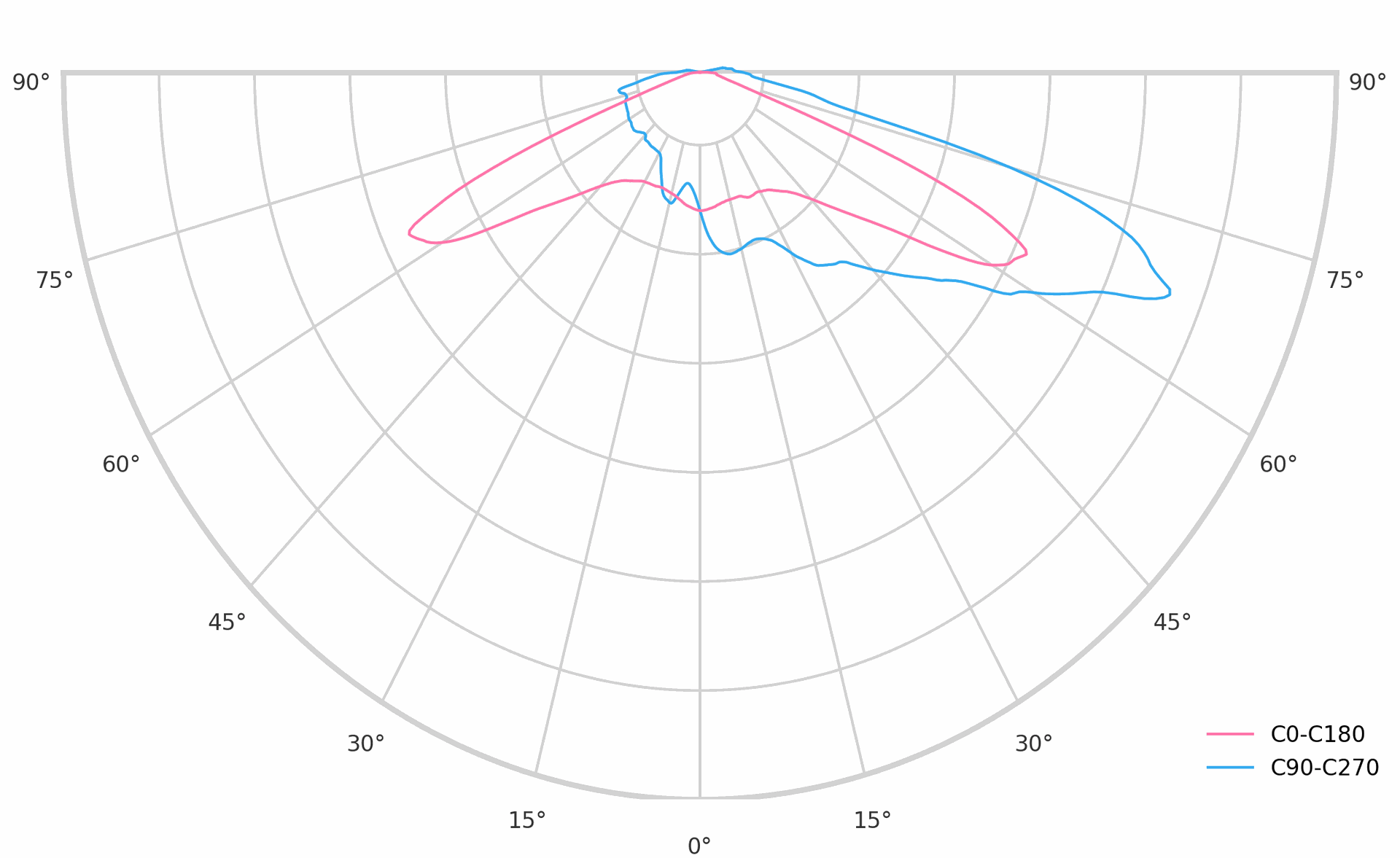

Dimmensions and light distribution
