POS-M-740-1-C16926
Technical specifications
Light Source
LED
CCT
4000k
CRI
70
Switching type
Non-dimmable
Connected load
78,03 W
Lumen output
10 434,00 lm
Efficiency
133,7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Skrutková svorka
Switching type
Non-dimmable
IP protection
66
Protection class
I
Ambient temperature
-40 to +50 °C
Light Source
LED
CCT
4000k
CRI
70
Connected load
78,03 W
Lumen output
10 434,00 lm
Efficiency
133,7 lm/W
Ripple
3 %
Inrush current
85 A
Inrush time
256 μs
Optical system
Optika
Optical part material
Tvrdené sklo
Housing material
Hliníkový odliatok
Surface finish
Prášková farba
Width
240,00 mm
Height
109,00 mm
Length
613,00 mm
Weight
5,10 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
rokov

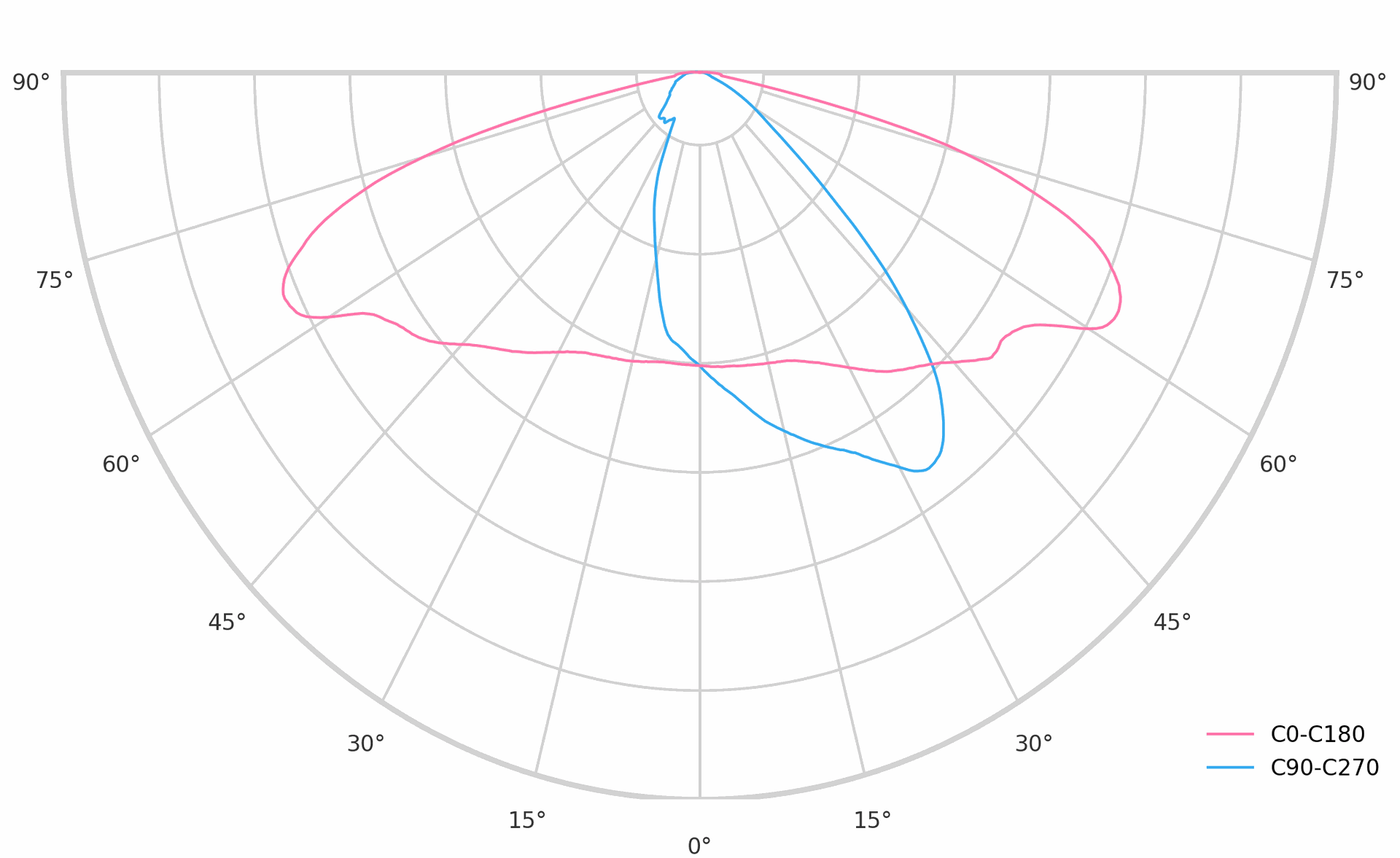

Dimmensions and light distribution
