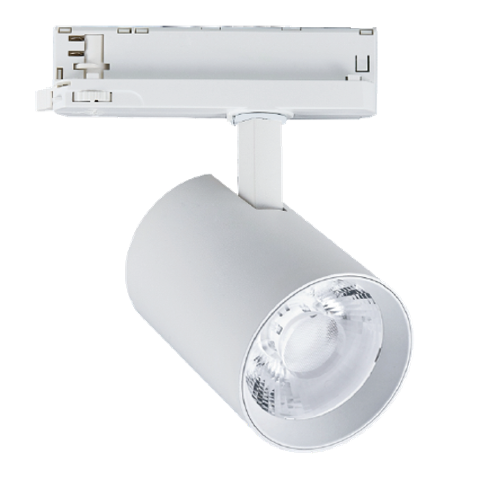

DIABLO-L-940-1-24-WH
Technical specifications
Light Source
LED
CCT
4000k
CRI
90
Switching type
Non-dimmable
Connected load
27,50 W
Lumen output
3 456,64 lm
Efficiency
125,7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3- fázový adaptér
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
27,50 W
Lumen output
3 456,64 lm
Efficiency
125,7 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Hliníkový odliatok
Surface finish
Prášková farba
Height
132,00 mm
Diameter
90,00 mm
Weight
0,80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

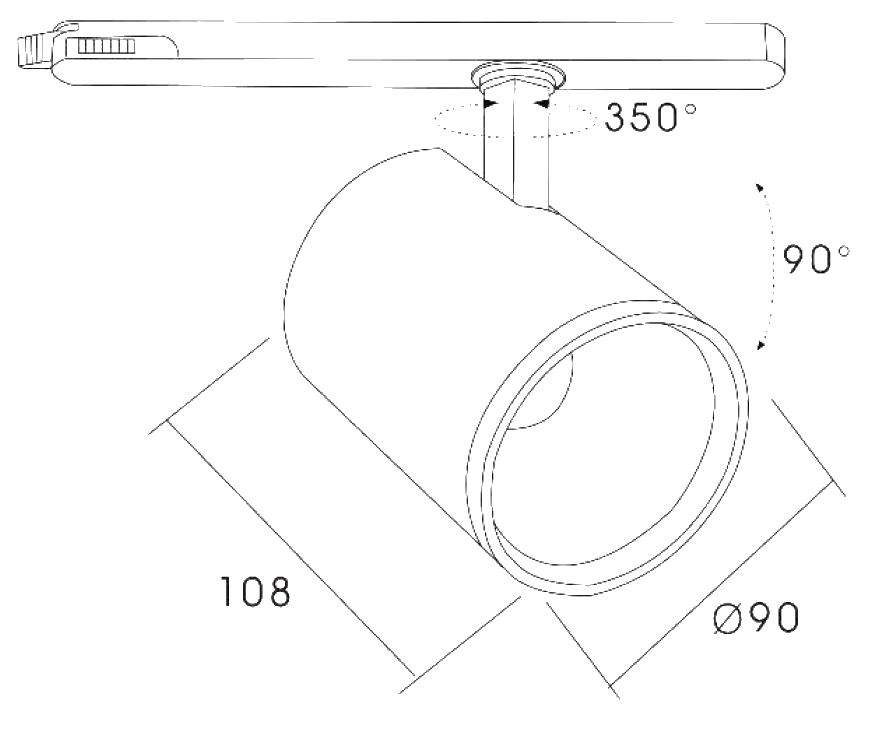

Dimmensions and light distribution
