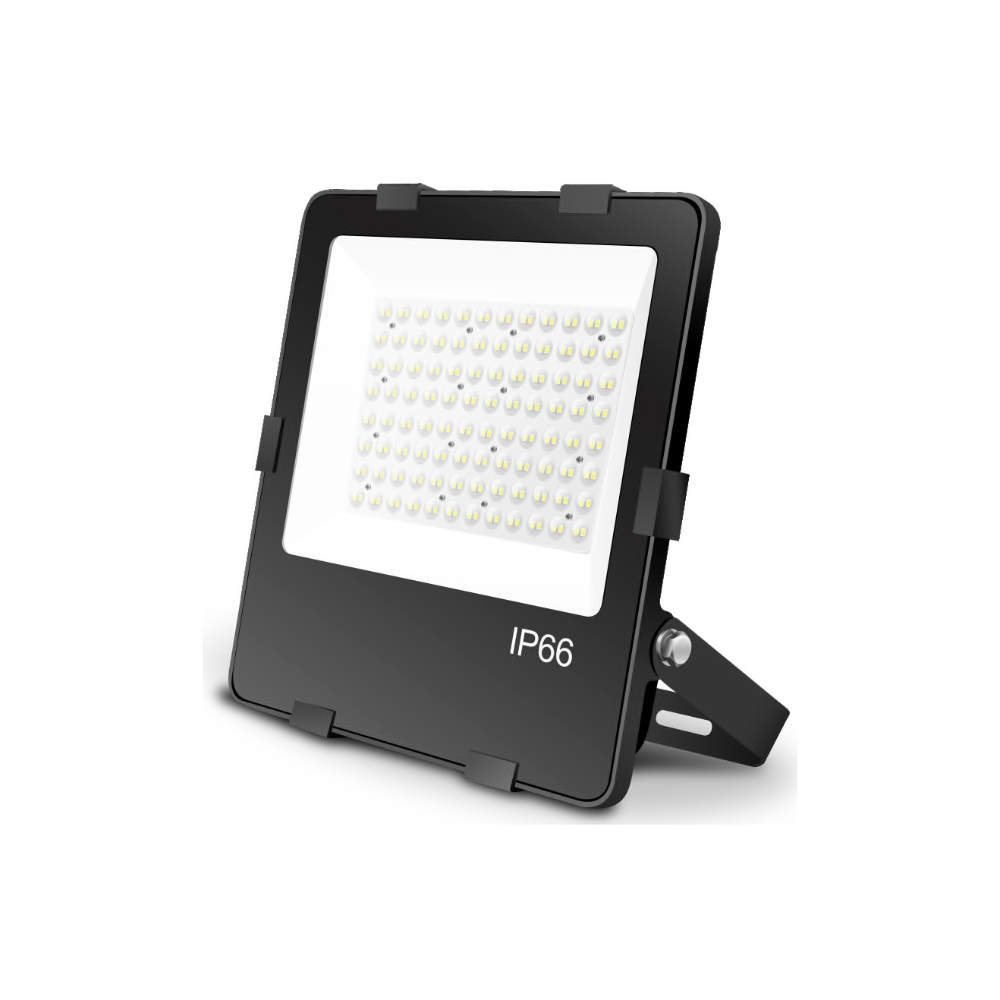

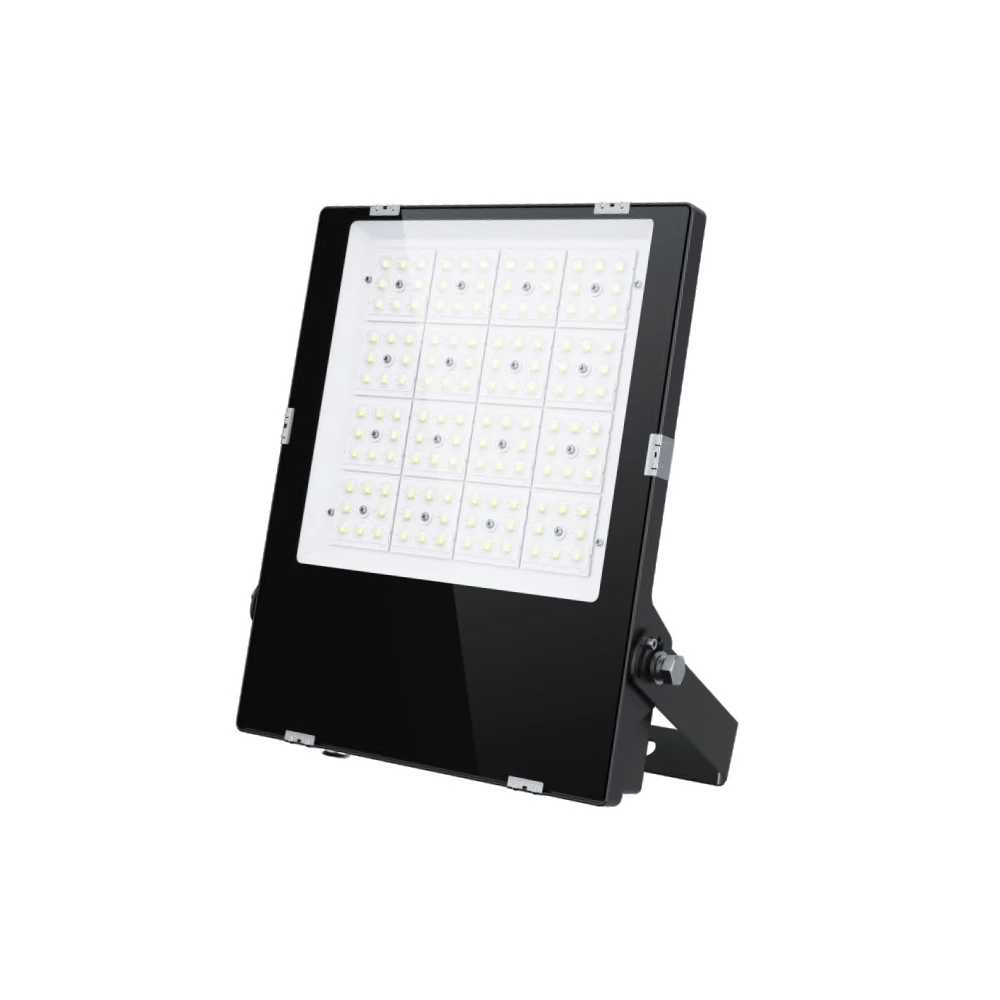

Area G3
Technical specifications
Light Source
LED
CCT
4000K, 5000K
CRI
80
Switching type
Nestmievateľné , DALI
Wattage
100-200 W
Lumen output
14088-35289 lm
Specification
Area G3 je ideálnym riešením pre väčšinu vonkajších aplikácií, ako sú nástenné montáže okolo fasád budov, záhrady, chodníky v blízkosti budov, garáže, vstupné cesty a príjazdové cesty.
Applications and features
Light distributions
ASYM1
ASYM2
Options
Product code
Power consumption[W]
Lumen output[lm]
CCT
CRI
Dimming
Light distribution
AREA-L-840-1-ASYM2
200.0
35289
4000k
80
Non-dimmable
ASYM2
Power consumption[W]
200.0
Lumen output[lm]
35289
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM2
AREA-L-840-2-ASYM2
200.0
35289
4000k
80
DALI
ASYM2
Power consumption[W]
200.0
Lumen output[lm]
35289
CCT
4000k
CRI
80
Dimming
DALI
Lenses
ASYM2
AREA-L-850-1-ASYM2
200.0
35289
5000k
80
Non-dimmable
ASYM2
Power consumption[W]
200.0
Lumen output[lm]
35289
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM2
AREA-L-850-2-ASYM2
200.0
35289
5000k
80
DALI
ASYM2
Power consumption[W]
200.0
Lumen output[lm]
35289
CCT
5000k
CRI
80
Dimming
DALI
Lenses
ASYM2
AREA-M-840-1-ASYM1
150.0
21409
4000k
80
Non-dimmable
ASYM1
Power consumption[W]
150.0
Lumen output[lm]
21409
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM1
AREA-M-840-2-ASYM1
150.0
21409
4000k
80
DALI
ASYM1
Power consumption[W]
150.0
Lumen output[lm]
21409
CCT
4000k
CRI
80
Dimming
DALI
Lenses
ASYM1
AREA-M-850-1-ASYM1
150.0
21409
5000k
80
Non-dimmable
ASYM1
Power consumption[W]
150.0
Lumen output[lm]
21409
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM1
AREA-M-850-2-ASYM1
150.0
21409
5000k
80
DALI
ASYM1
Power consumption[W]
150.0
Lumen output[lm]
21409
CCT
5000k
CRI
80
Dimming
DALI
Lenses
ASYM1
AREA-S-840-1-ASYM1
100.0
14088
4000k
80
Non-dimmable
ASYM1
Power consumption[W]
100.0
Lumen output[lm]
14088
CCT
4000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM1
AREA-S-840-2-ASYM1
100.0
14088
4000k
80
DALI
ASYM1
Power consumption[W]
100.0
Lumen output[lm]
14088
CCT
4000k
CRI
80
Dimming
DALI
Lenses
ASYM1
AREA-S-850-1-ASYM1
100.0
14088
5000k
80
Non-dimmable
ASYM1
Power consumption[W]
100.0
Lumen output[lm]
14088
CCT
5000k
CRI
80
Dimming
Non-dimmable
Lenses
ASYM1
AREA-S-850-2-ASYM1
100.0
14088
5000k
80
DALI
ASYM1
Power consumption[W]
100.0
Lumen output[lm]
14088
CCT
5000k
CRI
80
Dimming
DALI
Lenses
ASYM1
